LG ACP IV PACP4B000 | Advanced Control Platform IV HVAC Controller

The LG PACP4B000 (also identified by Part Number ACM74638802) is a sophisticated centralized controller designed for large-scale LG Multi V and HVAC systems. As the fourth generation of the Advanced Control Platform (ACP IV), this unit acts as a high-speed gateway between indoor units and a management network. It allows for integrated control of up to 256 indoor units, providing a web-based interface for monitoring, scheduling, and energy management without the need for additional software.

Product Specifications and Datasheet

  • Model Number: PACP4B000 / ACM74638802

  • System Capacity: Controls up to 256 indoor units (via 4 PI-485 ports)

  • Communication Protocols: Modbus TCP, BACnet/IP (Optional), and LG APN

  • Interface: Built-in Web Server (accessible via PC, Tablet, or Smartphone)

  • Storage: Integrated SD card slot for data logging and history backup

  • Power Supply: 100-240 V AC, 50/60 Hz

  • Dimensions: 230 mm x 165 mm x 60 mm

  • Weight: Approximately 1.1 kg

  • Country of Origin: South Korea

Application Areas

  • Commercial Buildings: Centralized management of VRF systems across multiple floors or zones.

  • Hotels: Integration with Property Management Systems (PMS) for guest room climate control.

  • Educational Facilities: Scheduling HVAC operation for classrooms and administrative offices to optimize energy use.

  • Data Centers: Monitoring and controlling redundant cooling units to maintain strict temperature parameters.

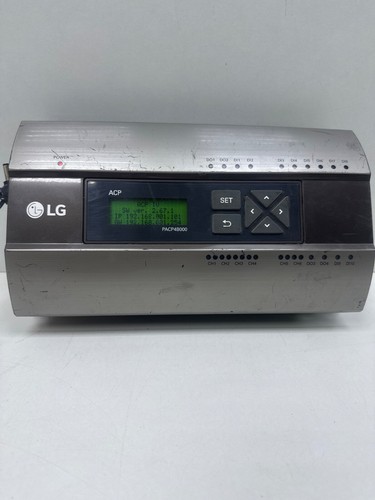

  • LG ACP IV PACP4B000 HVAC Controller/Advanced Control Platform IV P/N ACM74638802

Product Instructions for Use

  1. Mounting: Install the ACP IV in a clean, dry control room or electrical cabinet. It can be DIN-rail mounted or fixed directly to a flat surface.

  2. Network Wiring: Connect the LG indoor units to the ACP via the PI-485 gateway. Use the LAN port to connect the ACP IV to the building’s local network (LAN) for remote access.

  3. Initial Setup: Access the configuration menu by entering the default IP address into a web browser. Set the system time, date, and assign unique addresses to each connected indoor unit.

  4. Energy Management: Utilize the energy-saving features to set setpoint limits and peak-wattage controls to prevent high electricity demand charges.

Q&A: Frequently Asked Questions

Q1: Do I need a special license for BACnet/IP connectivity? A1: Yes, while the hardware supports the protocol, a specific software license key is typically required to activate BACnet/IP communication for integration with third-party Building Management Systems (BMS).

Q2: Can I monitor the system from outside the local network? A2: Yes, by setting up port forwarding on your router or using a VPN, you can access the ACP IV web interface from any remote location with an internet connection.

Q3: What happens to the settings if there is a power failure? A3: The ACP IV features non-volatile memory and an internal battery backup for the clock, ensuring all schedules and configuration settings are retained during power outages.

Recommended Similar Models

  • PACP5B000: The newer ACP 5 model with enhanced processing speed and a modernized user interface.

  • PLNWKB000: LG LonWorks Gateway for integration into LonWorks-based automation networks.

  • PQCSZ250S0: LG AC Smart IV, a similar centralized controller featuring a built-in touchscreen display.

  • PMNFP14A1: PI-485 Gateway module required to connect Multi V indoor units to the ACP platform.

  • PANNK1000: LG LGateway for specialized protocol conversion in enterprise-level building control.
