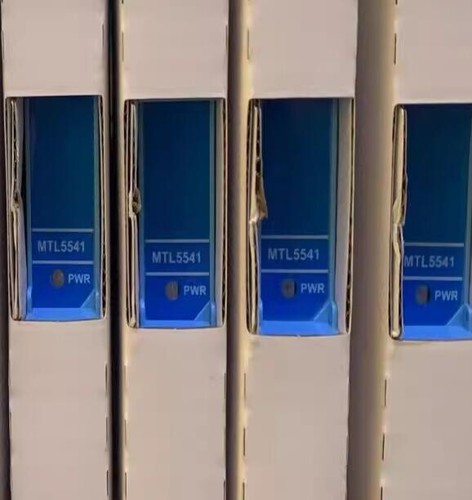

The MTL 5541 is a high-performance, single-channel galvanic isolating safety barrier designed to interface conventional 2-wire or 3-wire 4-20mA transmitters located in a hazardous area with a receiver in the safe area. As part of the globally recognized MTL5500 DIN-rail mounting series, this module provides certified intrinsically safe (IS) protection by limiting electrical energy to prevent ignition in explosive atmospheres. Featuring high-accuracy galvanic isolation between input, output, and power supply circuits, the MTL 5541 eliminates the need for a high-integrity intrinsic safety earth connection, making it an essential component for stable, noise-free signal transmission in critical process loops.
Ensure your safety-instrumented systems maintain compliance by sourcing from our dedicated MTL 5541 Safety Barrier inventory repository.
Product Datasheet and Technical Specifications
-
Series Allocation: MTL5500 Intrinsic Safety DIN-Rail Series
-
Model Designation: MTL 5541
-
Barrier Type: Galvanic Isolator (No high-integrity IS earth required)
-
Number of Channels: 1 single channel
-
Transmitter Type Supported: 2-wire or 3-wire conventional transmitters
-
Hazardous Area Input Range: 4 to 20 mA DC
-
Safe Area Output Range: 4 to 20 mA DC (Source or Sink configuration)
-
Circuit Isolation Voltage: 250 VAC r.m.s. between safe-area and hazardous-area circuits
-
Transfer Accuracy: Better than 15 µA under nominal conditions
-
Temperature Drift Coefficient: Better than 0.6 µA / °C
-
Supply Voltage Range: 20 to 35 VDC via plug-in power bus or individual power terminals
-
Maximum Current Consumption: 51 mA at 24 VDC (with 20 mA loop drive)
-
Power Dissipation Within Module: 0.7W typical at 24V with 20mA current
-
Hazardous Area Safety Parameters: $U_o = 28\text{V}$, $I_o = 93\text{mA}$, $P_o = 0.65\text{W}$
-
Connection Terminals: Pluggable screw terminals accepting up to 2.5 $\text{mm}^2$ stranded wire
-
Enclosure Protection Metrics: IP20 finger-safe rated polycarbonate shell
-
Mounting Profile: Standard 35mm T-section DIN-rail assembly
-
Device Profile Dimensions: 16.2mm x 109.3mm x 119.6mm (0.63 x 4.3 x 4.7 inches)
-
Net Physical Weight: 150 grams (0.33 lbs compact high-density design)
-
Ambient Temperature Profile: -20°C to +60°C (-4°F to 140°F) continuous operational envelope
-
International Safety Approvals: ATEX, IECEx, FM, CSA, SIL 2 capable (IEC 61508)
-
Country of Production: United Kingdom (UK)
Key Application Fields
This intrinsically safe isolating barrier is utilized extensively across hazardous process environments where explosive gases, vapors, or combustible dusts are constantly present. It serves as a primary safety interface in petrochemical storage facilities, offshore drilling platforms, crude oil refineries, and natural gas distribution hubs. Additionally, it is integrated into Safety Instrumented Systems (SIS) and Distributed Control Systems (DCS) within fine chemical processing centers, pharmaceutical powder containment zones, grain handling silos, municipal wastewater digesters, and gas turbine fuel metering stations.
Installation and Operating Instructions
Before beginning physical installation, verify that the hazard classification of the field area matches the safety parameters marked on the side of the MTL 5541 enclosure. Ensure all primary loop power is disconnected.
Mount the module by snapping it securely onto a standard 35mm DIN rail. If using a power bus configuration, ensure the module aligns perfectly with the underlying bus connector elements prior to locking it down.
Terminate the hazardous-area field wiring originating from the transmitter into the designated blue terminal blocks located on the top of the unit. Terminate the safe-area control system or receiver I/O card wiring into the designated grey terminal blocks located on the bottom of the unit. Ensure that a strict physical separation distance of at least 50mm is maintained between the hazardous (blue) and safe-area (grey) wiring tracks to prevent cross-contamination of energy.
Apply the 24VDC system power. The top-mounted power LED will illuminate a steady green, indicating correct internal voltage conditioning. Use a certified loop calibrator to inject a test signal from the field side and verify that the corresponding current is mirrored accurately within the safe-area automation software.
Frequently Asked Questions Q&A
Q: What is the primary operational advantage of the MTL 5541 galvanic isolator over a traditional Zener barrier?
A: Unlike Zener barriers, the MTL 5541 provides complete electrical galvanic isolation between the hazardous and safe zones. This eliminates the requirement for a dedicated, high-integrity intrinsic safety ground connection network, which drastically simplifies installation, avoids ground loop noise problems, and protects safe-area equipment from high-voltage field faults.
Q: Does this module support HART digital communication overlays on the 4-20mA analog signal?
A: The standard MTL 5541 is optimized for conventional analog current loop transmission. If your application relies on two-way smart transmitter diagnostics via the HART protocol, you should utilize the designated HART-compatible version within the same footprint, such as the MTL 5541Y or MTL 5546 series.
Q: Can this barrier be used to drive a current-to-pressure (I/P) positioner located in the hazardous field?
A: No. The MTL 5541 is strictly an input isolator designed to pass signal current from the hazardous field into the safe zone. To drive a valve positioner or actuator loop from the safe zone into the hazardous zone, an analog output isolator model, such as the MTL 5546, must be deployed.
Q: What do I check if the power LED is illuminated but no loop current is registering in the control system?
A: Check for correct loop wiring orientation on the pluggable terminals. Verify whether your transmitter is wired for 2-wire loop-powered operation (requiring the barrier to supply power) or 3-wire self-powered operation, and ensure the corresponding wiring schematic on the module casing has been followed precisely.
Latest Product & Industry News
As safety regulations like IEC 61508 become standard operating requirements across processing plants, facility managers are rapidly replacing older safety infrastructure with certified functional safety hardware. Functional testing data from global oil and gas operators indicates that moving from legacy safety networks to SIL 2 certified galvanic isolators lowers probability of failure on demand (PFD) values across the plant, resulting in extended mandatory test intervals and minimized proof-testing costs.
Concurrently, modern automation architectures are increasingly pushing toward high-density control cabinet configurations to maximize valuable footprint space. The slim 16.2mm design profile of contemporary isolating modules allows engineering teams to optimize the layout of their marshalling cabinets, allowing up to 30% more signal loops to be marshalled in the same physical space while keeping thermal emissions well within safe cabinet tolerances.
