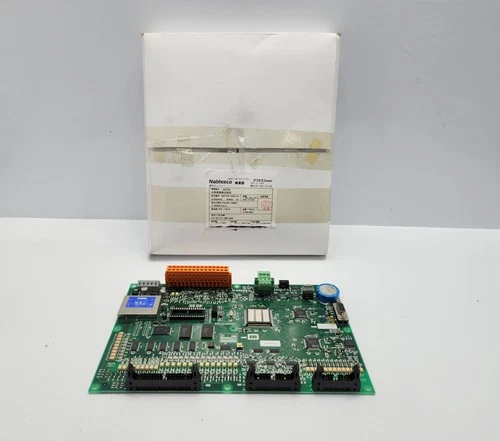

The NABTESCO ECL-201-01 (Part Number 885 73760144) is a high-precision PCB Card engineered by Nabtesco for use in maritime and industrial control systems. This electronic control board serves as a core processing and signal distribution unit for Nabtesco’s engine remote control systems. It is designed to handle complex logic, sensor feedback, and actuator positioning signals with high accuracy, ensuring the smooth and reliable operation of propulsion systems and heavy machinery.
Technical Specifications
-
Model Name: Nabtesco ECL-201-01
-
Part Number: 885 73760144
-
Dimensions: 280 mm (L) x 210 mm (W) x 30 mm (H)
-
Weight: 0.65 kg
-
Country of Origin: Japan
Application Fields
The ECL-201-01 is specifically utilized within the Nabtesco M-Series remote control systems for marine diesel engines. Its primary applications include the governance of throttle control, gearbox maneuver management, and engine speed synchronization. It is a vital component found in the engine control consoles of merchant vessels, tugboats, and offshore support craft, where precise mechanical response is required for navigation safety.
Instructions for Use
To install or replace the PCB, ensure the power to the main engine control cabinet is completely isolated. The board should be handled using proper anti-static (ESD) precautions to prevent damage to the sensitive integrated circuits. Align the board with the corresponding backplane connector in the control cabinet and slide it in until it clicks into place. Secure the locking tabs on both sides to prevent displacement due to engine vibration. After installation, verify the status LEDs on the board; a steady green light usually confirms proper power and system communication. Any specific calibration or address configuration must be performed through the master control software after the system is powered back on.
Frequently Asked Questions
What is the role of the ECL-201-01 in the control system? It acts as a signal processor, interpreting inputs from the telegraph or bridge control handles and converting them into precise output voltages to control engine speed and gearbox actuators.
How do I know if the PCB is faulty? Common indicators of failure include unresponsive engine controls, “Communication Error” alerts on the bridge console, or visible signs of damage such as burnt components or corroded traces on the board.
Can I repair this PCB card myself? Nabtesco boards contain highly calibrated components and specific firmware. Component-level repair is generally discouraged in the field. If a failure occurs, it is best to replace the board with a tested, genuine unit to ensure continued compliance with maritime safety standards.
Does this board require periodic maintenance? While it is an electronic component, it is susceptible to the harsh conditions of engine rooms. We recommend periodic inspections to ensure the cabinet environment is dry and free of excessive dust or oil mist.
