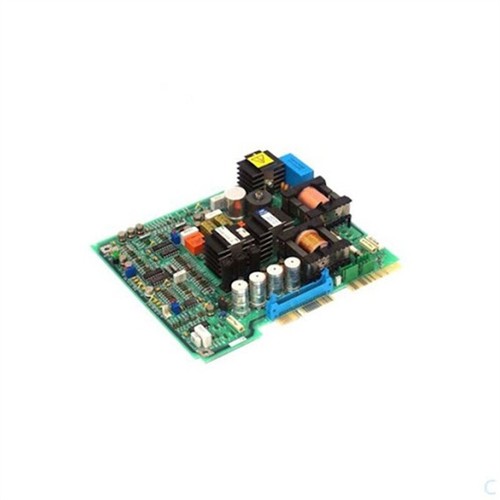

The ABB NTRO02 is a specialized Digital I/O Termination Unit designed for the Symphony Plus and Harmony (Bailey Controls) distributed control systems (DCS). This module provides the physical interface and termination points between field wiring and the system’s digital input or output modules. It is engineered to simplify the installation of high-density I/O by providing organized terminal blocks for 16 or 32 channels. The NTRO02 often includes integrated fusing and status indicators, ensuring that field-side faults—such as short circuits—are isolated before they can damage the more sensitive internal control electronics.
Product Specifications and Datasheet
General Parameters
-
Model Number: NTRO02
-
Brand: ABB (Bailey / Symphony Plus)
-
Device Type: Digital I/O Termination Unit (TU)
-
Channel Capacity: Typically 16 or 32 Channels (configuration dependent)
-
Module Compatibility: Works with IMDSI, IMDSO, and BRC series modules
-
Termination Type: Screw-clamp or Compression terminal blocks
-
Isolation: Channel-to-system isolation via the connected I/O module
Physical and Logistics
-
Dimensions: 177 mm (Height) x 40 mm (Width) x 127 mm (Depth)
-
Weight: 0.48 kg
-
Country of Origin: USA
-
Mounting: Rack-mounted on a Harmony I/O Mounting Base
-
Ambient Temperature: 0°C to +70°C
Application Areas
The NTRO02 is widely utilized in the power generation, petrochemical, and refining industries. It is the standard interface for connecting field devices such as limit switches, pressure switches, solenoid valves, and motor starters to the ABB Harmony control system. Its robust design makes it suitable for continuous process control environments where high availability and easy maintenance are required to prevent costly plant downtime.
Product Instructions
Installation of the NTRO02 should be done within a standard Harmony I/O cabinet. The termination unit snaps onto the designated mounting base, and the interconnecting cable (usually a NKLS or NKTU series cable) connects the NTRO02 to the corresponding I/O module in the rack. When wiring field devices, ensure that all leads are properly stripped and secured in the terminal blocks. If the module features per-point fusing, verify the fuse ratings match the load requirements. Always label the field wires clearly to facilitate future troubleshooting.
Common Questions & Answers (Q&A)
What is the difference between the NTRO02 and NTDI01? While both are termination units, the NTRO02 is generally used for digital output or configurable digital I/O applications, whereas the NTDI01 is specifically optimized for digital input signals with specific voltage sensing requirements.
Does this unit require an external power supply? The NTRO02 itself is a passive termination unit, but it passes power from the system backplane or external field power supplies to the field devices. Ensure the field power source is appropriately sized for the total load of all connected channels.
How do I check for a blown fuse on the unit? Many versions of the NTRO02 include individual LED indicators for each channel. If a field device is commanded to “ON” but shows no voltage at the terminal, check the status LED; an unlit or red LED (depending on the revision) typically indicates a blown fuse or lost field power.
