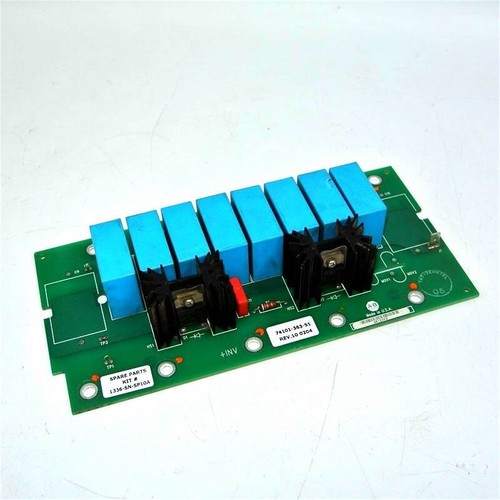

The 1336-SN-SP10A is a premium, industrial-grade printed circuit board assembly manufactured for variable frequency drive (VFD) power infrastructures and control architectures. Engineered to serve as a critical internal interface, snubber, or signal processing card, this robust PC board ensures optimal electrical regulation, transient voltage suppression, and clean signal communication within heavy-duty motor control systems. Its high-grade copper tracking and ruggedized solid-state layout make it a highly dependable component for maintaining system stability and preventing premature component wear under demanding load cycles.
Secure your required system spares directly through our specialized 1336-SN-SP10A PC Board inventory channel.
Product Datasheet and Technical Specifications
-
Component Identification: 1336 Series Internal PC Board Assembly
-
Model Sub-Designation: 1336-SN-SP10A
-
Classification: Power Electronics Control / Interface Card
-
Circuit Layer Architecture: Multi-layer heavy copper substrate for high thermal dissipation
-
Rated Voltage Insulation: High-voltage trace isolation compliant with industrial drive standards
-
Nominal Current Capacity: Engineered to withstand localized high-current transients
-
Primary Board Coating: Industrial-grade conformal coating for moisture and dust protection
-
Connection Interfaces: Multi-pin header strips and ruggedized solder terminal points
-
Mounting Configuration: Multi-point standoff mounting pattern for secure chassis installation
-
Physical Dimensions: Standardized form-factor for direct drive-bay housing integration
-
Approximate Unit Weight: 280 grams (0.62 lbs compact, rigid layout)
-
Safe Operating Temperature range: -10°C to +60°C (14°F to 140°F) ambient cabinet interior
-
Storage Environment Profile: -40°C to +85°C (-40°F to 185°F) moisture-controlled storage
-
System Compliance & Safety: Built to match original equipment manufacturer tolerances
-
Country of Production: United States (USA)
Key Application Fields
This specialized printed circuit board is predominantly utilized within high-power industrial motor control systems, variable speed drives, and automated power distribution networks. It is widely deployed across continuous-operation processing industries including heavy metallurgy, mining conveyor systems, pulp and paper processing mills, and large-scale water pumping stations. Additionally, its high tolerance for electrical noise and rapid switching dynamics makes it a crucial component in marine propulsion control, automated cranes and hoists, rubber and plastics extrusion machinery, and localized power generation control cabinets.
Installation and Operating Instructions
Before commencing any service work on the drive internal components, isolate the primary incoming power source and follow standard lock-out/tag-out regulations. Wait a minimum of 5 to 10 minutes for the internal bus capacitors to fully discharge, and verify with a reliable multimeter that zero voltage is present across all high-power terminals.
Wear a grounded static-dissipative wrist strap to prevent ESD damage to the sensitive solid-state logic components. Carefully extract the faulty board from its mounting standoffs by releasing the retaining hardware and disconnecting any ribbon cables or wiring harnesses.
Position the new module onto the chassis standoffs, securing it with the original mounting screws to establish an appropriate chassis ground connection. Reconnect all communication headers and power taps securely, ensuring no wires are pinched or under excessive physical tension. Inspect the drive housing for any loose tools or debris before closing the enclosure panel, re-energize the drive system, and run standard system self-diagnostics to verify full operation.
Frequently Asked Questions Q&A
Q: Is the 1336-SN-SP10A PC Board compatible across all frame sizes of the 1336 drive series? A: No, it is designed for a specific sub-series and frame allocation within the broader 1336 motor control family. You should always cross-reference your drive’s full catalog code and existing internal board revision letters to ensure an exact engineering match.
Q: Does this component require specialized software configuration upon installation? A: No, this is a hardware-level interface and signal board. It functions seamlessly as a direct physical replacement, meaning it will function immediately upon correct installation and wiring without requiring auxiliary firmware flashes.
Q: What is the primary purpose of the conformal coating applied to this board? A: The industrial-grade conformal coating provides a protective barrier against conductive dust, humidity, airborne chemicals, and fine metal particles common in factory environments, effectively preventing localized electrical tracking or short-circuits.
Q: What are the main signs that an internal drive PC board like this needs replacement? A: Common indicators include visible thermal discoloration or burn marks on the substrate, drive fault codes indicating snubber or gate-drive errors, and intermittent signal dropouts during high-load motor acceleration phases.
