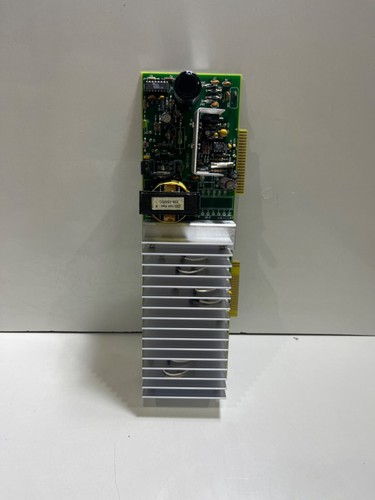

The Panametrics 703-1161 is a high-precision internal power supply module designed for ultrasonic flow meters and gas analyzers, providing regulated DC power to the main processing electronics and transducer firing circuits.
Core Features
-
High-stability voltage regulation for sensitive ultrasonic measurements.
-
Integrated EMI/RFI filtering to prevent signal interference.
-
Robust short-circuit and over-voltage protection.
-
Modular “plug-in” design for simplified field maintenance.
Technical Parameters
-
Input Voltage: 100-240 VAC or 12-28 VDC (model specific).
-
Output Voltages: Multi-rail DC outputs (+5V, ±15V).
-
Power Output: 20W to 40W nominal.
-
Efficiency: High-efficiency switching topology.
-
Isolation: 2500V input-to-output.
Specifications
-
Model ID: Panametrics 703-1161 Replacement PCB.
-
Compatibility: XMT868, PT878, and DigitalFlow series.
-
Mounting: PCB standoffs or slot-mount.
-
Connection: Pin-header or terminal block interface.
-
Cooling: Natural air convection.
Application Areas
-
Ultrasonic liquid flow meters (XMT868i).
-
Flare gas and steam flow measurement systems.
-
Portable ultrasonic flow measurement (PT878).
-
Industrial process gas analyzers.
Q&A
-
Q: Is the 703-1161 interchangeable with the 703-1161-02?
-
A: Yes, they are typically functional equivalents; however, checking the revision suffix ensures compatibility with specific motherboard connectors.
-
-
Q: What is the most common sign of power supply failure in Panametrics meters?
-
A: A blank display, intermittent rebooting, or “Transducer Error” messages caused by unstable firing voltages.
-
-
Q: Can this board be repaired at the component level?
-
A: While possible, full board replacement is recommended to maintain the factory calibration and safety certifications of the flow meter.
-
