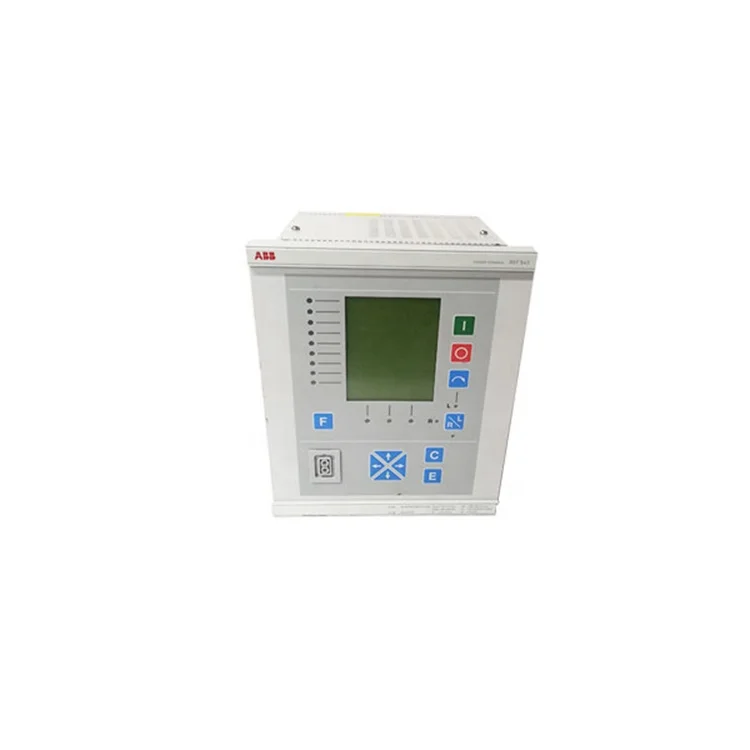

ABB REF543CM129AAAA Feeder Terminal (REF543)

Product Introduction

The ABB REF543CM129AAAA Feeder Terminal is an advanced numerical protection, control, and monitoring device designed for medium-voltage distribution feeders. As part of the proven ABB REF54x series, the REF543 integrates protection, control, measurement, and communication functions into a compact and reliable terminal. It is engineered to improve feeder availability, enhance operational safety, and support modern substation automation architectures.

The REF543 is suitable for both new installations and retrofit projects, offering flexible configuration options and robust performance in demanding electrical environments.

Product Parameters (Technical Specifications)

• Model: REF543CM129AAAA
• Product Type: Numerical Feeder Protection Terminal
• Protection Functions: Overcurrent, earth-fault, directional protection (configurable)
• Control Functions: Circuit breaker control, disconnector control, interlocking logic
• Measurement: Phase currents, earth current, voltage (with external VT)
• Auxiliary Supply Voltage: Wide-range DC supply (typical substation standards)
• Binary Inputs: Multiple programmable digital inputs
• Binary Outputs: Configurable relay outputs for trip, alarm, and control
• Communication Interfaces: Serial communication for substation integration
• Mounting Type: Panel-mounted
• Environmental Class: Designed for industrial and utility-grade environments
• Operating Temperature: Suitable for standard indoor substation conditions

Product Datasheet Overview

The ABB REF543 feeder terminal datasheet highlights the device’s capability to combine protection, control, and monitoring into a single intelligent electronic device (IED). Its modular firmware design allows customized protection schemes while maintaining fast tripping times and stable operation. The terminal supports long-term accuracy, low maintenance requirements, and reliable operation throughout its service life.

Country of Origin

Country of Origin: Sweden
Manufactured under ABB’s strict quality assurance and testing standards to ensure long-term reliability and compliance with international utility requirements.

Application Fields

The ABB REF543CM129AAAA is widely used in:

• Medium-voltage distribution networks
• Utility substations
• Industrial power distribution systems
• Commercial power infrastructure
• Feeder protection in ring and radial networks
• Retrofit of conventional relay panels

Product Usage Instructions

1. Install the REF543 terminal securely in a control panel or protection cubicle.
2. Connect current transformers (CTs) and voltage transformers (VTs) according to the wiring diagrams.
3. Supply auxiliary power within the specified voltage range.
4. Configure protection parameters using ABB configuration tools or front-panel interface.
5. Test protection and control logic before commissioning.
6. Place the feeder into service and monitor operating data periodically.

Routine inspection and functional testing are recommended to ensure long-term performance.

Product Technical Description

The REF543 feeder terminal uses numerical protection algorithms to detect abnormal operating conditions such as short circuits and earth faults with high accuracy. Its microprocessor-based design ensures fast response times and stable performance under transient conditions.

Integrated control logic allows seamless operation of circuit breakers and disconnectors, reducing the need for external control relays. The terminal also supports event recording and fault indication, assisting maintenance personnel in fault analysis and system restoration.

The REF543 is designed to support reliable feeder automation while maintaining a compact footprint and straightforward system integration.

Product Manual & Datasheet

📘 Product Manual & Datasheet:
ABB REF543CM129AAAA Feeder Terminal Manual
