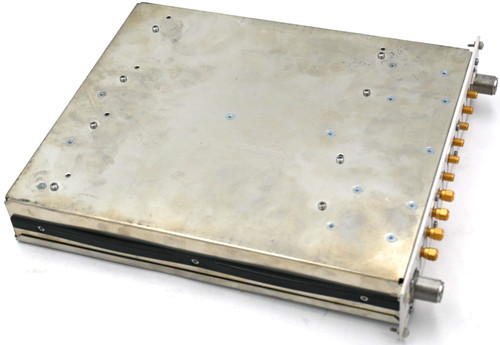

The DRMC 887781-20A is a sophisticated communication and positioning module designed for high-reliability industrial applications. Operating at the 410 MHz frequency band with ROF8 (Radio Over Fiber/Radio Frequency) capabilities, this module integrates precise GPS tracking with wireless data transmission. It is specifically engineered for environments where synchronization, location tracking, and long-range telemetry are required, such as in automated heavy machinery, utility grid infrastructure, and remote site asset management.

Technical Specifications

• Operating Frequency: 410 MHz (Narrowband telemetry).

• Positioning: Integrated high-sensitivity GPS receiver for precise temporal and spatial data.

• Interface: Standard industrial communication interface (typically Serial/RS-232/RS-485 for host integration).

• Dimensions: Modular compact design (approx. 3.5 inches x 2.5 inches x 1.0 inch).

• Weight: Approximately 0.2 kg (0.44 lbs).

• Country of Origin: United States.

Application Fields

📡 Remote Telemetry: Used in monitoring remote sensor networks and utility metering. 🚜 Automated Machinery: Provides real-time location and operational command links for autonomous vehicles in mining or agriculture. 🌐 Grid Synchronization: Utilizes GPS timing to synchronize events across distributed substation assets.

Product Usage Instructions

💡 Antenna Placement: Mount the GPS/Radio antenna in a position with a clear view of the sky to ensure satellite lock, and ensure the radio antenna is clear of large metallic obstructions. 🛠️ Integration: Connect the module to the host controller via the designated data port; ensure the baud rate and parity settings match the host’s communication configuration. ✅ Initialization: Upon power-up, allow a “cold start” period for the module to acquire GPS satellites and synchronize its internal clock for accurate time-stamping.

Common Questions & Answers

Q: What is the benefit of the 410 MHz band for this module? A: The 410 MHz band is part of the UHF spectrum, offering excellent penetration through industrial obstacles and long-range propagation, which is superior to higher-frequency bands like 2.4 GHz for telemetry. Q: How do I improve GPS signal strength in an indoor environment? A: Use an external active GPS antenna with a coaxial extension cable, routing it to an area with an unobstructed view of the sky. Q: Does this module require an external backup battery? A: The module typically includes a small supercapacitor or battery for “Warm Start” capability to maintain ephemeris data during brief power interruptions.

Product Maintenance Instructions

Keep the antenna connectors clean and free from moisture, as oxidation can significantly degrade signal sensitivity at 410 MHz. Periodically check the mounting hardware for signs of vibration-induced loosening. If the module is exposed to harsh elements, inspect the casing seals to ensure the internal components remain protected from dust and humidity. For firmware updates, ensure a stable power supply is maintained throughout the entire flashing process to prevent bricking the module.
