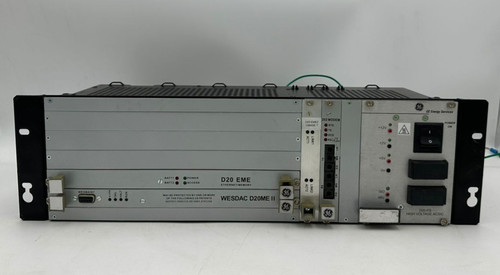

The GE D20/WESDAC D20 family represents a legacy of robust Remote Terminal Units (RTUs) and communication processors foundational to modern electrical grid infrastructure. These devices facilitate data acquisition from field equipment, perform local logic processing, and manage high-speed communication with Master Stations.

Technical Specifications & Key Components

• D20 EME / D20ME II: High-performance processor modules designed to handle complex logic, data logging, and protocol conversion (e.g., DNP3, IEC 60870-5-101/104).

• D20 EME2 10BASE-T: An Ethernet-enabled variant of the processing engine, facilitating modern IP-based communication within the substation local area network (LAN).

• 202 MODEM: A specialized communication interface card used for legacy leased-line or radio frequency (RF) serial communications in distributed remote sites.

• D20-PS (580-2007): The dedicated Power Supply unit for the D20 rack, responsible for converting station battery voltage (e.g., 48VDC or 125VDC) into the stable, filtered DC voltages required for the backplane modules.

• Weight/Dimensions: Varies by chassis configuration (typically 19-inch rack-mount standard).

• Origin: United States/Canada.

Application Fields

⚡ Substation Automation: Centralized control and monitoring of circuit breakers, transformers, and switchgear. 🌐 SCADA Systems: Serving as the intelligent gateway between field I/O and the Energy Management System (EMS). 🛡️ Grid Protection: Managing time-stamped sequence-of-events (SOE) recording for post-fault analysis.

Product Usage Instructions

💡 Deployment: Ensure the D20 rack is securely grounded to the station ground grid to prevent interference with sensitive signal processing. 🛠️ Configuration: Use the WESDAC software suite (or modern equivalent) to map I/O points and configure protocol parameters. ✅ Connectivity: For the 10BASE-T modules, ensure managed switches are used for network traffic segregation to maintain real-time performance for control commands.

Common Questions & Answers

Q: Can I replace a legacy serial D20 EME with a 10BASE-T version? A: Yes, but this often requires a firmware update and adjustments to the configuration database to accommodate the switch from serial to TCP/IP communication protocols. Q: What is the significance of the 580-2007 power supply model? A: This specific part number defines the input voltage range and wattage capacity; ensure the replacement matches the exact input voltage (VDC) of your station batteries to prevent damage. Q: How do I handle communication errors with the 202 MODEM? A: Check the signal-to-noise ratio on the communication line and verify the frequency/level settings against the modem’s datasheet specifications.

Product Maintenance Instructions

Regular maintenance requires checking the cooling airflow through the D20 rack to prevent thermal drift of the processor modules. Inspect the D20-PS for any signs of capacitor aging (bulging or leakage), as power supply instability is the leading cause of intermittent system resets. Keep all connectors free of oxidation, and ensure the configuration battery on the processor module is replaced periodically according to the recommended service interval to prevent the loss of site-specific settings during a power outage.
