• • Technical Parameters of GE UR6EH Module (English Introduction)

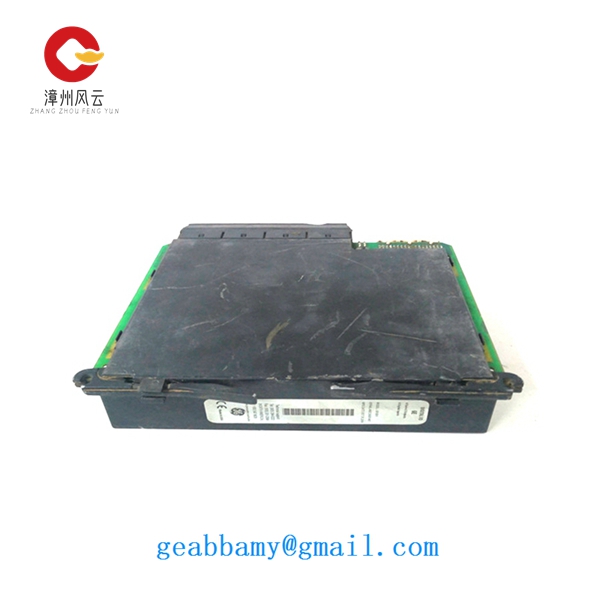

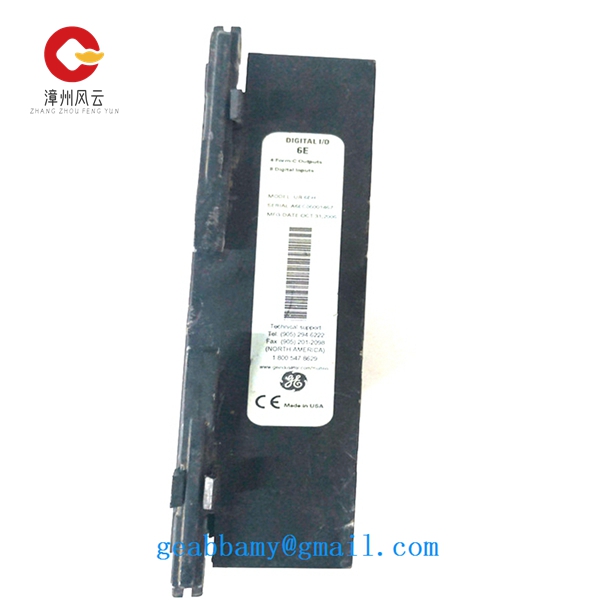

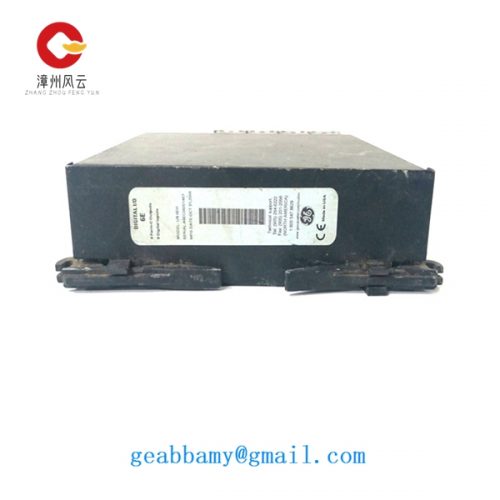

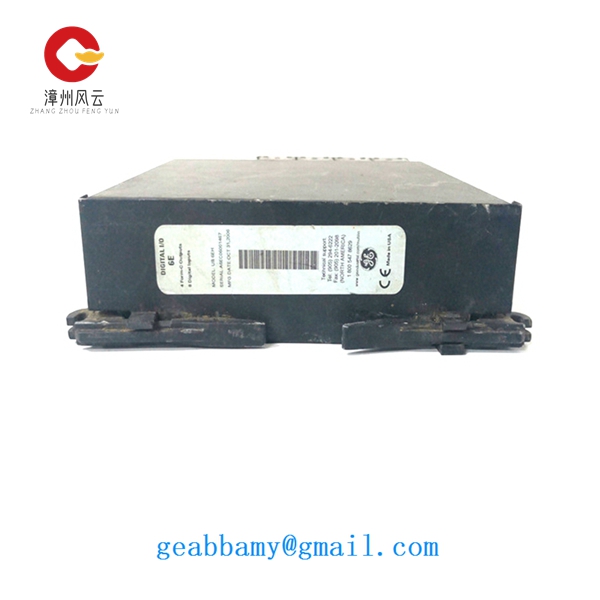

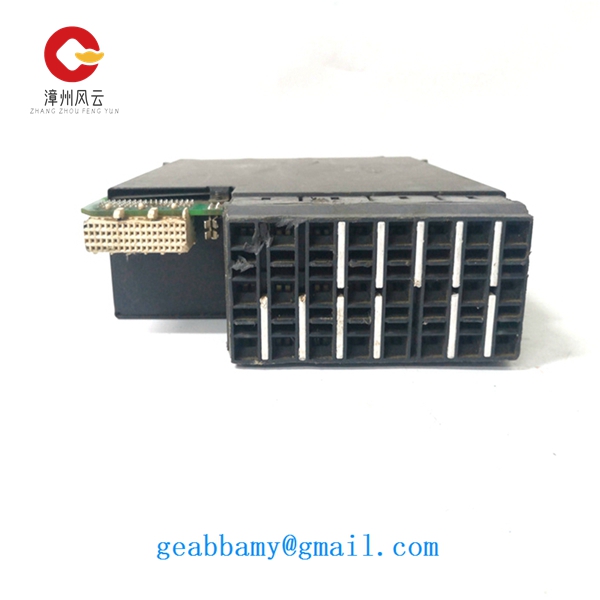

    The GE UR6EH module is a high-performance, ruggedized I/O (Input/Output) device designed for industrial automation and control systems. Below are its key technical specifications:

    1. UR6EH General Specifications

    • Model: UR6EH
    • Manufacturer: GE (General Electric)
    • Application: Digital input/output (DI/DO) processing, motor control, relay protection, and automation systems.
    • Form Factor: Modular design, compatible with GE Multilin UR series or other standard industrial racks.
    • Dimensions: Compact size for DIN-rail or panel mounting (specific dimensions may vary; refer to datasheet).
    •

    2. UR6EH Electrical Specifications

    • Power Supply:
      • Voltage: Typically 24 VDC (some variants may support 110–240 VAC/VDC).
      • Power Consumption: Low power design (e.g., ≤5 W under normal operation).
    • Input/Output Channels:
      • Digital Inputs:
        • Number: Up to 16 channels (configurable).
        • Type: Dry contact (no-voltage) or wet contact (voltage-based).
        • Voltage Range: 24–240 VAC/VDC (depending on configuration).
        • Response Time: ≤5 ms (typical).
      • Digital Outputs:
        • Number: Up to 16 channels (configurable).
        • Type: Relay outputs (NO/NC) or solid-state (SSR/transistor).
        • Load Capacity:
          • Relay: 5 A @ 250 VAC (resistive).
          • Solid-state: 0.5 A @ 30 VDC (max).
    • Isolation: Channel-to-channel and channel-to-power isolation (e.g., 1500 VAC).
    •

    3. UR6EH Performance Characteristics

    • Scan Rate: High-speed processing (e.g., ≤10 ms per full scan cycle).
    • Signal Filtering: Built-in debouncing and noise suppression for reliable input detection.
    • Operating Temperature: -20°C to +70°C (industrial grade).
    • Storage Temperature: -40°C to +85°C.
    • Humidity: 5% to 95% RH (non-condensing).
    • EMC Compliance: Meets IEC 61000-6-2 (industrial immunity) and IEC 61000-6-4 (emissions).
