HONEYWELL 05704-A-0121 process control module

HONEYWELL 05704-A-0121 Module Technical Specifications

1、 Basic parameters
Product model: 05704-A-0121
Brand: Honeywell
Applicable fields: industrial automation and control systems, ship automation, process control, etc.
Working voltage: usually 24V DC (please refer to the product manual for confirmation).
Interface type: Supports multiple communication interfaces (such as Ethernet, serial port, etc.), can communicate and control with other devices.
Installation method: Modular design, supporting DIN rail installation or rack installation.
2、 Functional characteristics
high reliability
Adopting high-quality materials and manufacturing processes to adapt to harsh industrial environments.
Support redundant operations, fault detection, and automatic switching functions to ensure high system availability.
Programmability
Modules can be configured and controlled through programming to adapt to different control system requirements.
Supports discrete I/O programs, with options such as input filtering time and fault protection configuration.
High precision and isolation
Provide high-precision signal processing to ensure the stability and accuracy of the output signal.
Each channel is isolated separately, supporting current isolation between channels to enhance anti-interference capability.
Scalability and compatibility
Supports multiple fieldbus protocols (such as Foxboro DCS fieldbus) and can expand system functions.
Compatible with multiple terminal components (such as TA), convenient for on-site wiring and maintenance.
safety
Equipped with safety protection functions to prevent accidents and equipment damage.
Support fault protection configuration to ensure safe and stable system operation.
3、 Technical Details
Discrete input/output
Provide 8 discrete voltage monitor input channels and 8 discrete output channels.
Each channel is isolated separately, supports read back function, and can verify output status.
Output capability
The discrete relay output that supports switching has the following specific parameters:
AC voltage: 10A at 80-120V AC.
DC voltage: 5A at 80-125V DC, or 5A at 15-30V DC.
Redundant operation
In redundant mode, a pair of modules are connected to a universal terminal component (TA) through redundant adapters.
Support output contact monitor readback, detect internal faults and automatically switch.

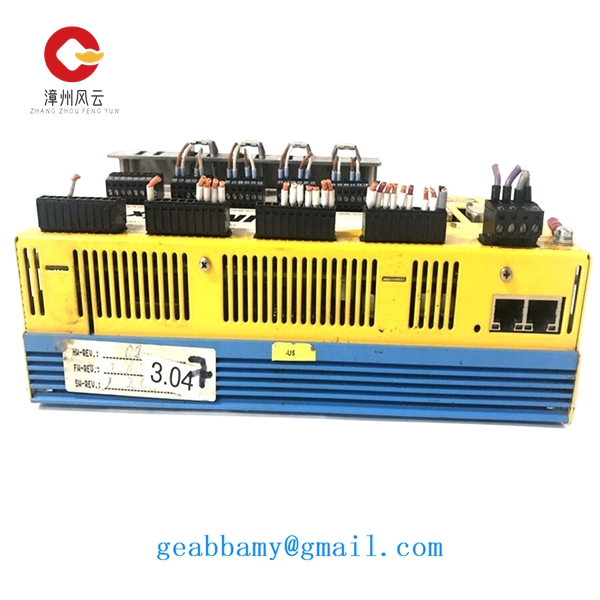

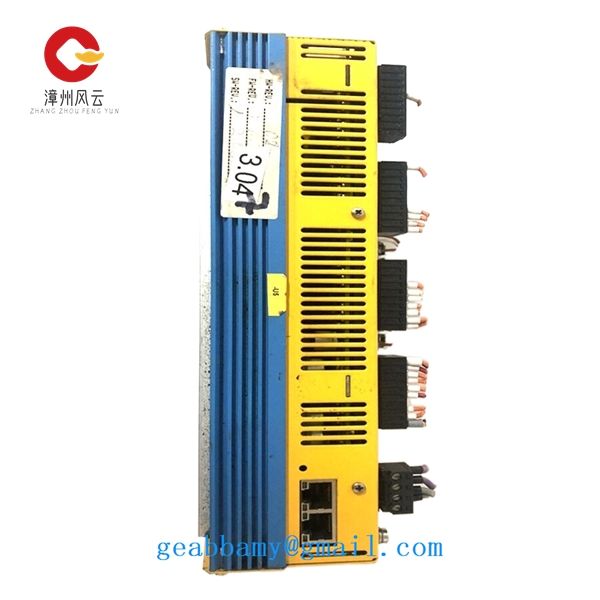

Product related pictures:
