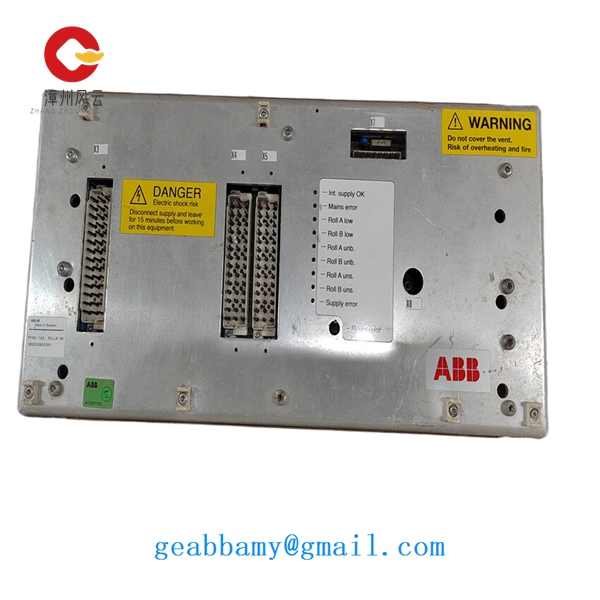

The PFSA103D module with catalog number 3BSE002492R0001 is a small automation unit made by ABB for factory control and signal handling. It reads digital and analog signals from sensors and sends output to valves, motors, lights and other devices. It works in control racks or on DIN‑rails with other ABB modules. It links to a main controller by a backplane connector or by standard field cables. It has two network ports for Ethernet/IP and Modbus TCP on RJ45 jacks. It also has spring‑clamp terminals for all field wires. It uses LEDs on the front to show power, link and error states. It uses no fans and the inside has a metal plate to move heat out to the housing. It can slot into a wide range of control panels or small enclosures. It can mount on a 35 mm rail by snapping in place or on a flat plate with two screws. It locks in so it does not slip when cables pull on it.

The unit runs from a 24 V DC supply and uses about 2 W in normal use. It can work in cold rooms at –40 °C and in hot areas at +85 °C. It also can sit in storage in the same –40 °C to +85 °C range. It handles up to 95 % relative humidity when there is no water on the contacts. It meets CE rules for safety and EMC. It has UL approval and meets RoHS limits on harmful substances. It has simple protection circuits for over‑voltage and reverse polarity. It cuts off power to the outputs when it sees a wrong supply. It resets itself when the supply returns to the right range. It can keep working when there is electrical noise from motors or welders and it cleans the signals so the controller sees a steady value.

The shape of the PFSA103D is a slim block that is 100 mm long, 50 mm high and 20 mm deep. It weighs about 0.1 kg so it adds little load to your rail or panel. The front shows green LEDs for power and green or red LEDs for each network port and each I/O channel. You can see which channel is live and which port is linked or in fault. The spring‑clamp terminals open when you press a tab and close when you let go. This makes wiring quick and tool‑free. You slide it off the rail by lifting a small release latch at the bottom. You can swap it without touching nearby modules. To get the full English datasheet you go to ABB’s support site and type the part number “3BSE002492R0001” in the search box. You also can email any ABB partner or distributor and ask for the PDF file by that number.
