📦 Product Overview

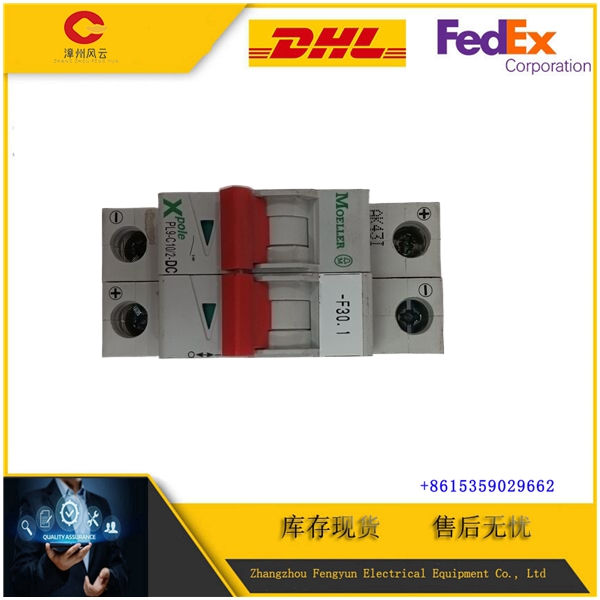

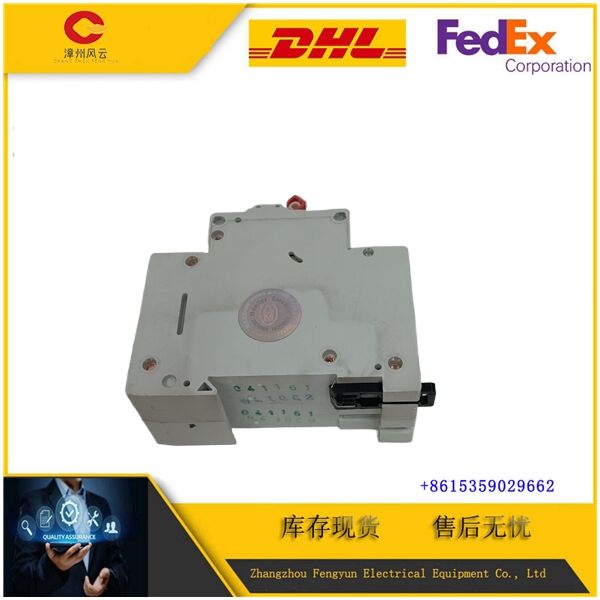

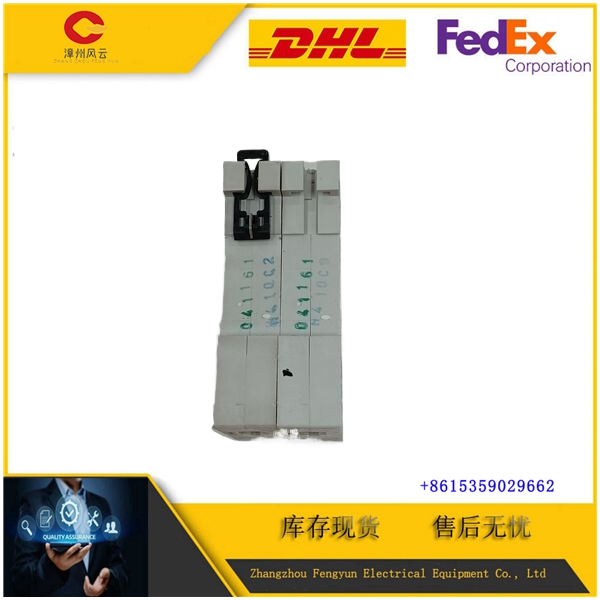

The EATON PL9-C10-2-DC is a high-performance DC contactor designed for industrial applications requiring reliable and efficient switching of direct current loads. Known for its durability and compact form factor, this contactor effectively manages the switching of DC motors, resistive loads, and other industrial devices with minimal arcing and wear. It is engineered to withstand demanding environments while maintaining superior operational stability.

With a rated current of 100 A, the PL9-C10-2-DC is ideal for medium to high power applications. Its modular design allows for easy integration into control panels, providing seamless connectivity and robust performance essential for industrial automation, renewable energy systems, and transportation.

⚙ Technical Specifications (Datasheet)

🔧 Key Features

• High Current Capacity – Supports switching of high DC currents up to 100 A with excellent contact reliability.
• Compact and Robust – Space-efficient design ideal for tight control panels without sacrificing durability.
• Efficient Coil Design – Low power consumption coil ensures energy-efficient operation.
• Long Service Life – High mechanical and electrical endurance suitable for demanding industrial cycles.
• Easy Installation – DIN rail mounting and standardized dimensions facilitate rapid deployment.
• Safety Certified – Complies with international standards to guarantee safe and reliable operation.

🛠 Installation & Maintenance

• Mounting: Secure the contactor firmly on a clean DIN rail or panel surface, avoiding excessive vibrations. Ensure proper alignment to maintain mechanical integrity.
• Wiring: Use cables and terminals rated for the specified currents and voltages. Tighten all terminal screws to recommended torque values to prevent loose connections.
• Environment: Install in a dry, dust-free location with adequate ventilation to prevent overheating. Avoid exposure to corrosive gases or liquids.
• Inspection: Periodically check contacts for signs of wear or pitting. Inspect coil insulation and wiring for damage. Replace worn components promptly.
• Cleaning: Remove dust accumulation using compressed air or a dry cloth. Avoid using solvents or liquids that might degrade insulation materials.
• Testing: Perform electrical continuity and coil function tests after installation and during routine maintenance to ensure reliable operation.

⚠ Usage Precautions

• Do Not Overload: Avoid exceeding the rated current and voltage to prevent premature failure or hazards.
• Stable Control Voltage: Maintain consistent control voltage to the coil for proper switching action and longevity.
• Protect Against Moisture: Moisture ingress can cause corrosion and malfunction. Use sealed enclosures in humid environments.
• Avoid Excessive Heat: Ensure good airflow around the contactor to maintain recommended operating temperatures.
• Qualified Personnel Only: Installation and servicing should be performed by trained technicians following safety standards.
• Power Off Before Servicing: Always disconnect power before maintenance or wiring adjustments to prevent electric shock.

🏭 Industrial Applications

• DC motor starters in industrial machinery
• Power switching in solar and battery energy storage systems
• DC load management in transportation and rail networks
• Automation and control panels for process industries
• Switching resistive and inductive DC loads in various industrial settings
