📄 PHOENIX CONTACT QUINT-PS-100-240AC-24DC/140 Datasheet & Product Overview

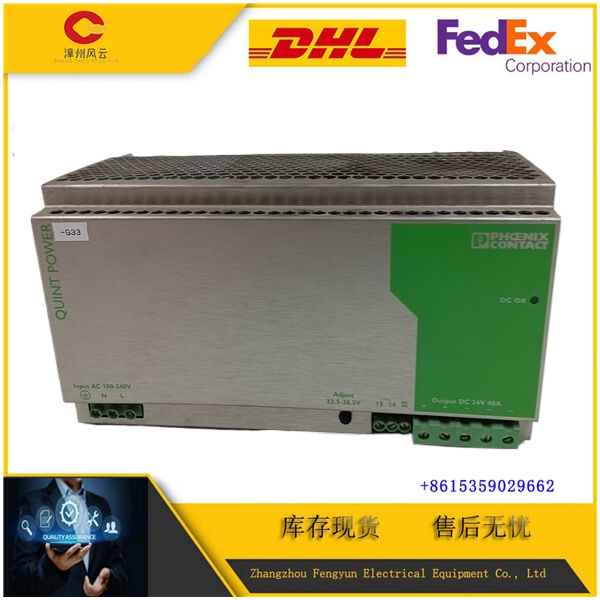

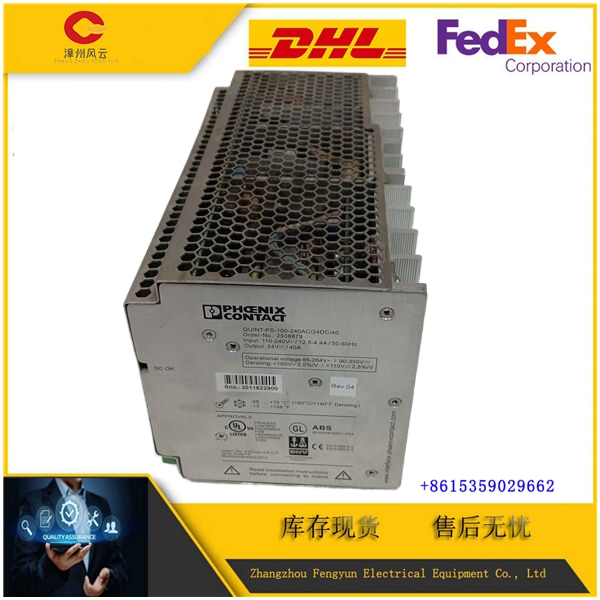

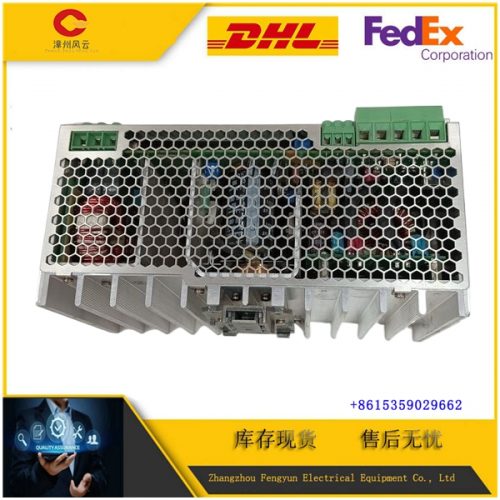

The PHOENIX CONTACT QUINT-PS-100-240AC-24DC/140 is a robust industrial power supply unit designed to provide stable and efficient 24V DC power output from a wide input AC voltage range. This power supply belongs to the renowned QUINT series, known for reliability, innovative features, and high performance in challenging industrial environments.

Engineered with advanced electronics and built-in monitoring capabilities, this unit supports smooth system operation and protects connected devices against power surges, short circuits, and overloads. Its compact design ensures easy integration into control cabinets, while its high efficiency reduces energy consumption and heat dissipation.

🔧 Product Parameters

📌 Key Features

• ⚡ High Efficiency: Minimizes energy loss to lower operational costs.
• 🔋 Wide Input Range: Compatible with global mains voltages, ideal for versatile applications.
• 🛡 Integrated Protections: Safeguards connected equipment from electrical faults.
• 🌡 Extended Temperature Range: Reliable performance in harsh environmental conditions.
• 🔧 Compact & Modular: Simplifies cabinet design with space-saving form factor.
• 📊 Status Indicators: LED display for quick operational status and fault diagnostics.

🛠 Installation & Maintenance

Installation Guidelines:

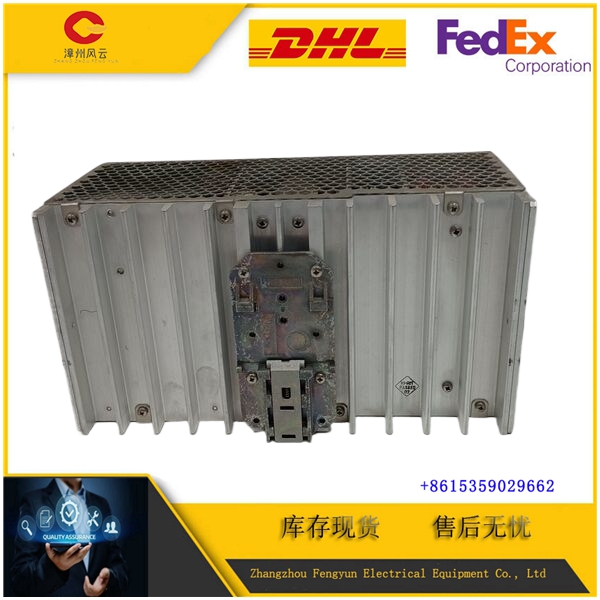

• Mount the unit securely on a TS35 DIN rail, ensuring proper orientation for ventilation.
• Verify input power connections meet the specified voltage range and are properly fused.
• Use appropriately rated cables for input and output to reduce voltage drop and heat buildup.
• Ensure clearance around the power supply for air circulation; avoid placing near heat sources.
• Grounding the device properly is crucial for safety and electromagnetic compatibility.

Maintenance Tips:

• Regularly inspect for dust accumulation and clean the unit using compressed air or a soft brush.
• Check for any signs of overheating or discoloration on the housing and terminals.
• Periodically verify the output voltage to confirm stable power delivery.
• Replace the power supply immediately if it exhibits unusual noise, excessive heating, or frequent tripping.
• Avoid opening the device; it contains no user-serviceable parts.

⚠️ Usage Notes & Precautions

• Always comply with local electrical standards and regulations during installation.
• Do not exceed the specified output current to prevent damage or shutdown.
• Avoid exposure to moisture or liquids that could compromise electrical integrity.
• When connecting multiple power supplies in parallel, ensure compatibility to prevent current imbalance.
• Allow sufficient warm-up time before full load operation to stabilize output voltage.
