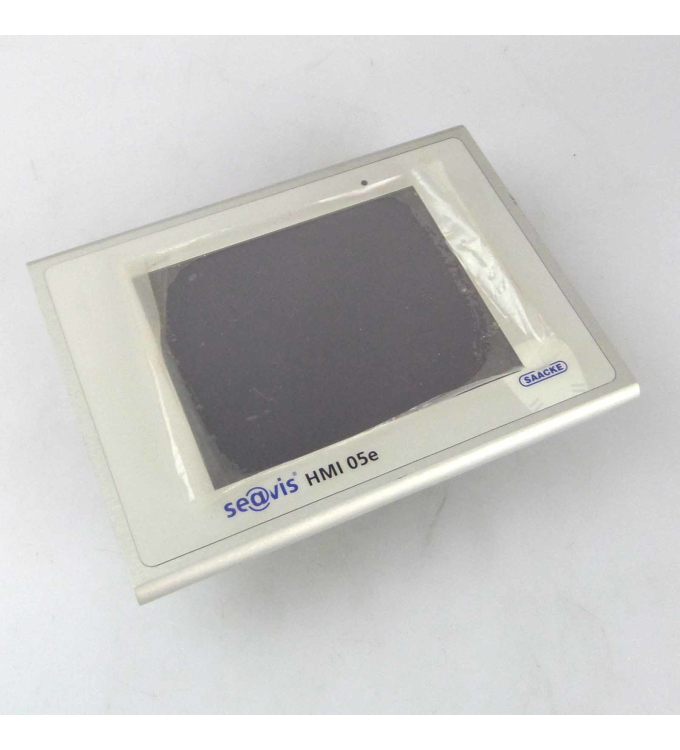

SAACKE HMI05E – Human-Machine Interface Module
Original price was: ¥99,999.00.¥1,212.00Current price is: ¥1,212.00.
SAACKE HMI05E Product Description
🌍Country of origin: USA France Germany Estonia Norway UK
⌚Delivery date: in stock
🛠After-sales service: brand new with one year warranty
⚙️ Product Category: Module/Controller/Server/Motor/Touch Screen
🕰Warranty: 12 months/365 days
☎️ Please contact me: 15359029662 Ms. Amy Sun
📎Chinese official website: www.dcsplcabb.com
📩Email: geabbamy@gmail.com
💬Whatsapp: +86 15359029662
If you have any products that you cannot find, you can consult anytime.
Detailed content
🌐 SAACKE HMI05E – Human-Machine Interface Module
The SAACKE HMI05E is an advanced Human-Machine Interface (HMI) module engineered to facilitate seamless communication and interaction between operators and SAACKE combustion control systems. This compact, panel-mountable unit is specifically designed for industrial environments requiring reliable process visualization and control accessibility.
🔧 Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | HMI05E |
| Display Type | TFT LCD |
| Display Size | 5.7 inches |
| Resolution | 320 × 240 pixels (QVGA) |
| Touchscreen | Resistive touchscreen |
| Processor | ARM-based microcontroller |
| Memory | Flash memory for program & data storage |
| Interfaces | RS232, RS485, Ethernet (RJ45) |
| Power Supply | 24 VDC (typical), reverse polarity protected |
| Power Consumption | Max. 10 W |
| Mounting Type | Panel mount with rear clamp fastening |
| Operating Temperature | -10°C to +60°C |
| Protection Class (Front) | IP65 (when properly installed) |
| Communication Protocols | Modbus RTU, Modbus TCP/IP, proprietary SAACKE |
| Firmware Update | Via USB or Ethernet |
| Dimensions (WxHxD) | Approx. 180 x 130 x 50 mm |
| Weight | Approx. 750 g |
| Certifications | CE compliant, RoHS conform |
💡 Product Overview
The SAACKE HMI05E is purpose-built to provide real-time operational feedback, intuitive control access, and simplified diagnostics for burner management and combustion systems. Its 5.7-inch color touchscreen delivers vivid visual clarity, while the resistive input system ensures responsiveness even when operated with gloves.
Ideal for integration with SAACKE systems like SKVJG, SCanView, and SCBxx burner management, this HMI streamlines user interaction without compromising system integrity or safety. The embedded interface suite (RS232, RS485, Ethernet) ensures compatibility with a wide range of industrial communication protocols, facilitating flexible integration into both legacy and modern control infrastructures.
The HMI05E is robustly engineered for harsh industrial environments, thanks to its IP65 front sealing and high vibration tolerance. Its embedded firmware is upgradeable, ensuring long-term adaptability and compatibility with future SAACKE systems.
⚙️ Key Features
- 🖥️ High-contrast QVGA display for optimal readability
- 📡 Versatile communication: RS232, RS485, Ethernet
- 🔒 Secure parameter entry with password-protected menus
- 🔁 Real-time monitoring and dynamic fault messaging
- 🔌 Simple power connectivity with reverse polarity protection
- 🧩 Easy integration into existing combustion systems
🧭 Comparison with Similar SAACKE Models
| Model | Display | Interface | Use Case | Mounting | Memory |
|---|---|---|---|---|---|
| HMI05E | 5.7” TFT | RS232, RS485, Ethernet | Standard control and diagnostics | Panel mount | Flash storage |
| HMI10T | 10.1” TFT | Ethernet, USB, CANbus | Advanced control & data logging | Panel mount | Extended memory |
| HMI07P | 7” LCD | RS485, Profibus, Modbus | Mid-range burner visualization | Panel mount | Flash + SD card |
🔗 Explore more SAACKE HMI solutions at:
https://www.fy-module.com/
🔗 Find compatible modules and spares here:
https://www.fy-module.com/
The SAACKE HMI05E offers an optimal balance between functionality and cost-efficiency, making it an ideal choice for industrial automation where compactness, reliability, and clarity are essential. Whether retrofitting older equipment or deploying into a new plant, the HMI05E guarantees dependable interface performance.
