⚙️ TRICONEX MP3101 Product Datasheet

📌 Product Overview

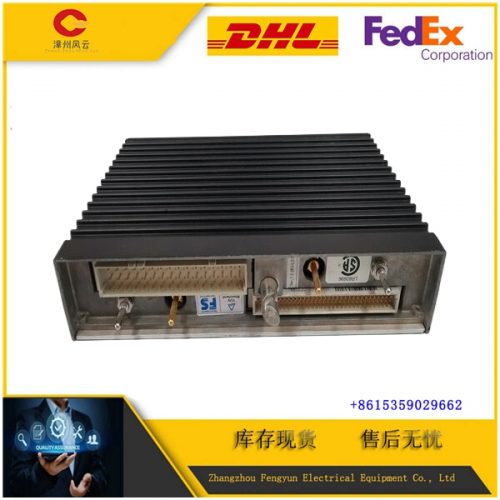

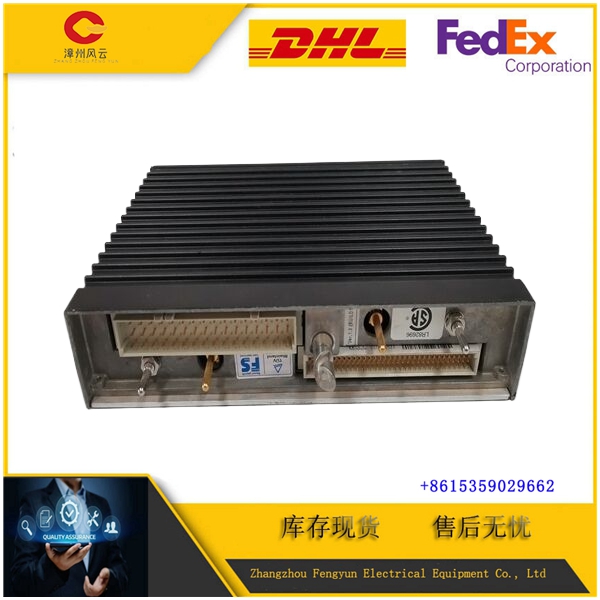

The TRICONEX MP3101 is a highly reliable safety monitoring and control module from the Triconex family, designed to deliver advanced process safety management in critical industrial applications. Known for its fault-tolerant architecture and rugged design, the MP3101 module is widely utilized in industries such as oil & gas, petrochemical, power generation, and manufacturing, where safety and continuous operation are paramount.

This module operates within the Triconex Triple Modular Redundancy (TMR) system architecture, ensuring high availability and fault tolerance. The MP3101 provides precise process monitoring, diagnostics, and safety logic execution with real-time performance, thereby enabling effective prevention of hazardous conditions.

📊 Product Parameters

🔧 Installation & Maintenance

• Installation Guidelines
  • Install the MP3101 module in a Triconex-compatible rack, ensuring correct orientation and secure seating on the backplane connector.
  • Verify proper grounding and shielding to minimize electromagnetic interference.
  • Confirm all wiring connections conform to the Triconex system wiring standards.
  • Avoid installing modules near high-temperature zones or corrosive environments unless properly protected.
• Maintenance Recommendations
  • Periodically inspect connectors and wiring for wear or corrosion.
  • Use diagnostic tools provided by Triconex to monitor module health and performance.
  • Replace any faulty or aged modules promptly to maintain system integrity.
  • Always power down the system or isolate the module before removal or replacement to prevent damage.

⚠️ Usage Notes & Precautions

• The MP3101 module must only be used within Triconex safety system environments to ensure certified operation.
• Avoid exposing the module to moisture, excessive dust, or mechanical shock.
• Do not hot-swap the module while system power is active to prevent hardware failure.
• Use only authorized Triconex accessories and replacement parts to maintain system compliance and safety certification.
• Regularly update firmware and software tools as recommended by the manufacturer.

🔗 Useful Links

• TRICONEX MP3101 Product Page
• FY Module Official Site

📋 Recommended Similar Products
