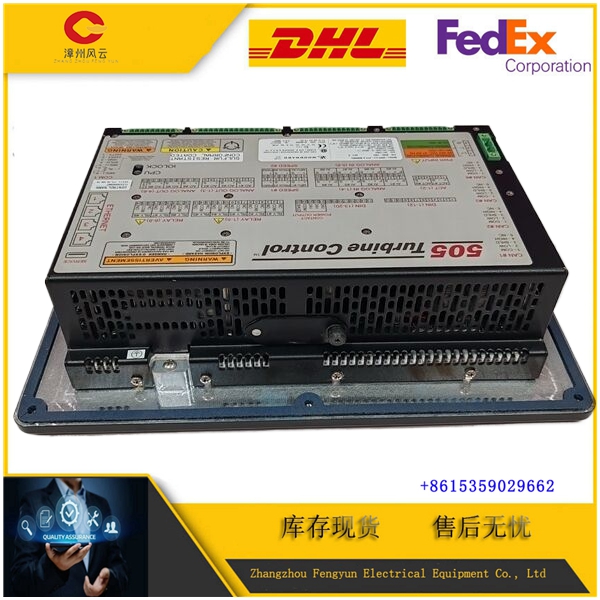

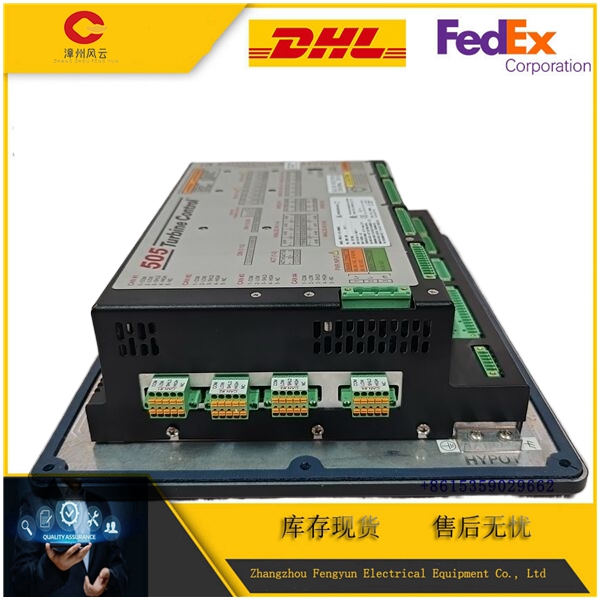

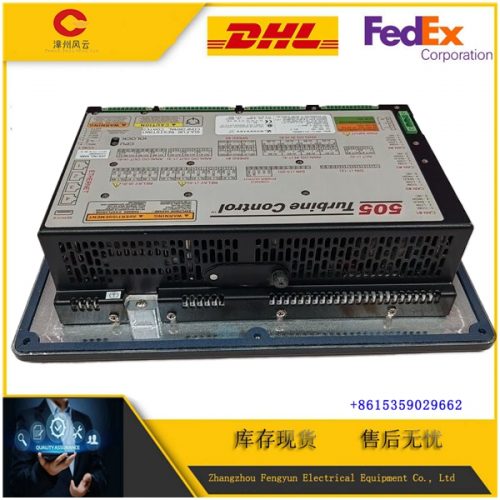

WOODWARD 8200-1302 Module — Product Specifications and Overview
📌 Product Overview
The WOODWARD 8200-1302 is a precision-engineered control module designed for industrial engine and turbine control applications. Renowned for its durability and accuracy, this module plays a vital role in managing fuel delivery, speed regulation, and safety shutdown functions in various heavy-duty power generation and mechanical systems.
Built to withstand challenging industrial environments, the 8200-1302 ensures reliable operation under wide temperature ranges and harsh conditions. Its modular design allows for straightforward integration with existing control architectures, providing operators with enhanced system responsiveness and safety.
📊 Technical Specifications
Parameter | Description |
---|---|
Manufacturer | WOODWARD |
Model Number | 8200-1302 |
Product Type | Control Module |
Operating Voltage | 24 V DC |
Control Type | Fuel and speed control |
Communication Interfaces | Analog and digital I/O |
Operating Temperature | -40°C to +85°C |
Mounting | Panel or rack mount |
Dimensions | Standard industrial module size |
Protection Rating | IP20 |
Certifications | CE, UL Approved |
⚙️ Installation and Maintenance Guidelines
- Installation
- Install the WOODWARD 8200-1302 module in a clean, dry environment protected from dust and corrosive substances.
- Mount securely using the recommended panel or rack mounting hardware to prevent vibration damage.
- Ensure proper grounding and shielding to avoid electrical noise interference.
- Follow wiring diagrams carefully to ensure correct input/output connections.
- Maintain adequate ventilation around the module to prevent overheating.
- Maintenance
- Regularly inspect connectors and wiring for signs of wear, corrosion, or looseness.
- Keep the module free of dust and debris; clean the exterior with a dry cloth only.
- Periodically verify all input/output signals to confirm proper operation.
- Perform firmware or software updates using only manufacturer-approved procedures.
- Document maintenance activities and any configuration changes to assist troubleshooting.
🔧 Usage Precautions
- Avoid exposure to moisture or liquids that could damage electronic components.
- Do not exceed specified voltage or current ratings to prevent module failure.
- Protect the module from sudden power surges using appropriate surge protection devices.
- Always power down the system before performing installation or maintenance work.
- Follow all local and industrial safety regulations during installation and operation.
