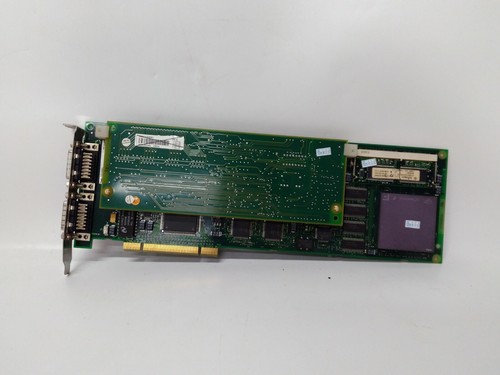

The ABB PU516A (3BSE032402R1) is a high-performance processor module specifically designed for the RTA (Remote Terminal Attachment) unit within ABB’s industrial automation ecosystem. It serves as a localized intelligence hub, managing data processing and communication between field devices and the central control system. Engineered for high reliability in distributed architectures, the PU516A ensures that time-critical control signals and diagnostic data are handled with minimal latency, even in electrically noisy or harsh industrial environments.
Product Specifications
-
Model Number: PU516A
-
Part Number: 3BSE032402R1
-
Manufacturer: ABB
-
Product Type: RTA Processor Module
-
Dimensions: 186 mm x 124 mm x 42 mm
-
Weight: 0.58 kg
-
Country of Origin: Sweden
-
Operating Voltage: 24V DC
-
Interface: Ethernet (TCP/IP), RS-232, and high-speed system bus
Application Areas
The PU516A is primarily utilized in large-scale Distributed Control Systems (DCS), such as the ABB 800xA or Advant series. It is commonly found in power generation plants, offshore oil platforms, and mineral processing facilities where “Remote Terminal” capabilities are required to bridge long distances between the control room and field instrumentation. Its robust processing power makes it ideal for handling complex I/O clusters and executing localized safety logic or data concentration tasks.
Operating Instructions
Installation of the PU516A should be performed within a grounded 19-inch subrack or a dedicated DIN-rail enclosure. Ensure that the system power is switched off before inserting the module into its backplane slot. The module must be seated firmly to ensure the multi-pin connectors make a secure connection. Once powered, configure the network settings (IP address and subnet) via the serial console port or the system’s engineering software. Because this unit manages remote communications, ensure that all shielded network cables are properly terminated to prevent data packet loss caused by electromagnetic interference.
Frequently Asked Questions (Q&A)
What is the function of the “RTA” in this module? RTA stands for Remote Terminal Attachment. This means the PU516A is designed to allow standard I/O modules to be placed far away from the main controller while maintaining high-speed, synchronized communication as if they were in the same cabinet.
How do I perform a factory reset on the PU516A? A factory reset is typically performed through the serial diagnostic port using a terminal emulation program. This clears the non-volatile RAM and resets the communication parameters to their default values, which is useful when moving the module between different system networks.
Does this module support redundancy? Yes, in many ABB configurations, two PU516A modules can be installed in a redundant pair. If the primary processor fails, the secondary unit takes over the communication link seamlessly without interrupting the process control.
