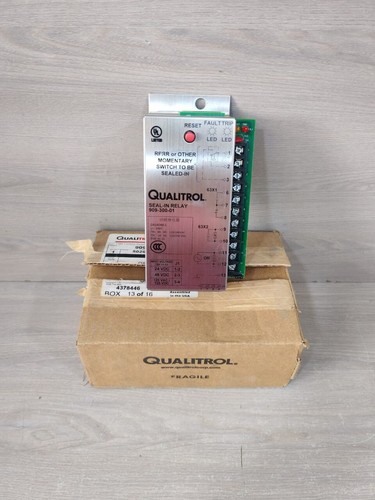

- Model: QUALITROL 909-300-01
- Brand: Qualitrol
- Series: Transformer and Power Protection Relay Accessories
- Core Function: Maintains latched trip/alarm status in protection circuits
- Product Type: Seal-In Relay / Auxiliary Protection Relay
- Key Specs: 24 V DC coil Mechanical latch action Panel-mounted protection relay
- Supply Status: ✅ Maintenance stock available
- Stock: Small-to-medium inventory available
- Warranty: 12 months
- Ship From: China / USA warehouse
- Condition: New surplus or tested surplus stock
- Typical Use: Transformer alarm panels, lockout circuits, protection annunciators
Key Technical Specifications
- Relay Type: Electromechanical seal-in relay
- Coil Voltage: 24 V DC
- Contact Configuration: Multiple auxiliary contacts (configuration dependent)
- Relay Function: Alarm/trip memory latch retention
- Mounting Method: Panel mount / protection cabinet installation
- Reset Method: Manual or electrical reset depending on wiring design
- Contact Rating: Industrial low-voltage control circuit duty
- Operating Temperature: -20 °C to +60 °C typical
- Insulation Class: Industrial protection relay standard
- Response Time: Millisecond-level switching response
- Application Environment: Transformer protection and utility control systems
- Wiring Interface: Screw terminal connection
- Isolation: Coil/contact isolation
- Mechanical Life: High-cycle industrial relay operation
- Protection Integration: Compatible with annunciator and lockout logic circuits
Application Scenarios & Pain Points
Seal-in relays look simple.
Too simple, honestly.
A lot of younger engineers see one and think:
“Just a relay.”
But inside utility and transformer protection systems, this tiny component often determines whether operators can correctly identify a fault event after the trip occurs.
That matters more than people realize.
Without a seal-in relay:
- transient alarms disappear too quickly,
- operators miss fault origins,
- troubleshooting becomes guesswork,
- and dangerous equipment may get re-energized without understanding the root cause.
I’ve seen entire maintenance teams waste hours because one alarm reset before anyone recorded it.
That’s exactly why seal-in relays still exist in many protection schemes.
Typical Application Scenarios
- Power Substations – Transformer Protection Panels
Maintains trip indication after Buchholz relay or overtemperature activation. - Generator Protection Systems – Lockout Circuits
Holds trip status until operators manually acknowledge and reset the fault. - Industrial Power Distribution – Alarm Annunciation
Prevents short-duration faults from disappearing before maintenance review. - Oil & Gas Facilities – Emergency Shutdown Panels
Stores critical trip conditions during unstable power events. - Water Treatment Plants – Pump Motor Protection
Retains overload and motor fault alarms for maintenance diagnosis.
Real Project Example – “The Alarm Was Gone Before Anyone Saw It”
A utility substation reported intermittent transformer trips during thunderstorms.
Operators saw:
- momentary alarm flashes,
- short-duration trip events,
- but no retained indication afterward.
The transformer restarted successfully each time, so the issue remained unresolved for weeks.
Maintenance initially suspected:
- CT noise,
- lightning surge interference,
- protection relay nuisance triggering.
But the real issue?
A failed 909-300-01 seal-in relay.
The relay coil energized correctly during trip events…
but the mechanical latch no longer held.
