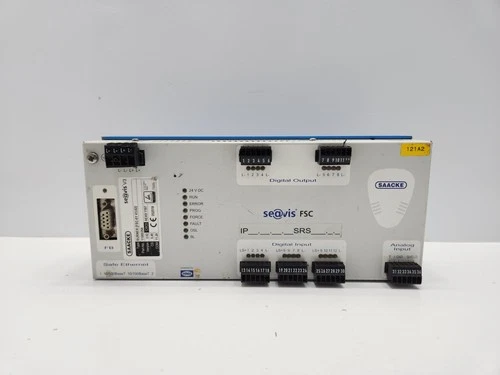

The Saacke Seavis FSC-01 Combustion Controller (982200419) is a highly sophisticated electronic control unit designed for the automatic management of industrial and marine burner systems. By integrating precise air-fuel ratio control with safety monitoring, it ensures optimal combustion efficiency and reliable operation in demanding thermal applications.
Product Specifications
-
Manufacturer: Saacke
-
Model Name: Seavis FSC-01
-
Part Number: 982200419
-
Product Type: Combustion / Burner Management Controller
-
Dimensions: 200 mm × 150 mm × 80 mm
-
Weight: 0.9 kg
-
Origin: Germany
Application Areas
The FSC-01 is specifically engineered for high-performance combustion environments, including:
-
Marine main and auxiliary boiler systems.
-
Industrial thermal fluid heaters and process furnaces.
-
Power plant burner management and ignition sequences.
-
Energy-efficient boiler retrofitting and emission control projects.
Product Usage Instructions
-
Safety Verification: Before installation or service, ensure the main burner power is isolated and the fuel supply line is securely closed. All work must be conducted in compliance with local safety standards for fuel-burning equipment.
-
Mounting: Install the controller in a clean, dust-free cabinet away from intense heat sources. Ensure the unit is properly grounded to a common technical earth to protect sensitive internal logic from electrical noise.
-
Wiring: Connect the burner actuators, flame sensors, and fuel valves according to the specific wiring schematic for the 982200419 version. Use shielded cables for all analog feedback signals.
-
Configuration: Access the setup interface to program the burner curves (air-fuel ratios). This typically requires a specialized service tool or laptop connection to ensure the combustion parameters are optimized for the specific fuel type (oil or gas).
-
Commissioning: Perform a full start-up sequence under observation. Verify that the pre-purge, ignition, flame stabilization, and modulation phases function within the safety tolerances defined by the controller’s firmware.
Q&A
What is the function of the FSC-01 in the burner chain? The controller acts as the central intelligence of the burner, automating the ignition sequence, managing fuel/air ratios to ensure efficient combustion, and monitoring for flame-out or system errors to maintain safety. Can I use the 982200419 for both oil and gas burners? Yes, the FSC-01 is typically versatile, but the specific configuration must be set correctly for the fuel type. Never attempt to run the controller without verifying that the software settings match the actual hardware configuration of your burner. What does a “Fault” light indicate? A fault light indicates a disruption in the safety loop. Common causes include a failed ignition attempt, loss of flame signal, or a malfunction in the air-damper actuator. Refer to the diagnostic readout on the interface to identify the specific error code. Is firmware update necessary? Firmware updates are generally performed only during major maintenance or upgrades to the burner control strategy; they should only be handled by authorized Saacke service personnel.
