| Feature | Specification |
| 🛡️ Product Model | BMEH582040C |
| 🏷️ Series | Modicon M580 (ePAC) |
| 🔄 Functionality | High-Availability Redundant CPU |
| 💻 Processing Power | Level 2 (High Performance) |
| ⚡ Memory | 4 MB (Application) |
| 🔌 Communication | Ethernet backplane, 2x Ethernet ports |
| 🛡️ Coating | Conformal Coating (C) |
| 🌡️ Operating Temp | 0°C to +60°C |

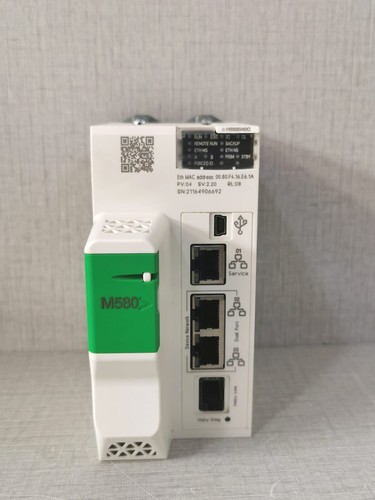

The Schneider Electric BMEH582040C is a high-performance redundant processor module designed for the Modicon M580 ePAC platform. Engineered for critical industrial applications, this Level 2 processor supports hot-standby redundancy, ensuring seamless failover and continuous operation in demanding automation environments. Its conformal coating provides enhanced protection against harsh conditions, making it suitable for process industries requiring high reliability.
Product News
The M580 series continues to represent the pinnacle of Schneider Electric’s industrial automation portfolio, focusing on “PlantStruxure” integration. The BMEH582040C remains a top choice for projects upgrading from legacy Quantum or Premium platforms, as it offers native support for Ethernet-based I/O communication (EtherNet/IP and Modbus TCP), significantly reducing wiring complexity while increasing data transparency across the enterprise.
Operation & Usage Instructions
-
Redundancy Link: Connect the two BMEH582040C modules via the dedicated synchronization link cable to enable Hot-Standby capability.
-
Firmware Update: Use Unity Pro (EcoStruxure Control Expert) to verify and update firmware. Ensure both primary and secondary CPUs are running identical versions to prevent synchronization errors.
-
IP Configuration: Each processor must have a unique IP address for Ethernet maintenance, while sharing a “Virtual IP” for the control application.
-
SD Card: Utilize the SD card slot for easy data backup and program restoration.
-
Hot-Swap: As a redundant module, these processors support removal and replacement while the system is powered, provided the partner CPU remains in the “Primary” state.
Product Operation
The BMEH582040C operates as a high-speed controller that manages logic execution for process-level devices. In a redundant configuration, one module acts as the “Primary,” executing the scan loop and managing I/O, while the “Standby” module continuously monitors the health of the primary. Through the synchronization link, the standby unit maintains a real-time image of the system state, allowing it to take over control in milliseconds if a hardware fault or communication loss occurs on the active unit.
Q&A
Q: What does the “Level 2” designation signify?
A: It refers to the processor’s capability tier, which includes increased memory, faster scan times, and support for a higher number of I/O points compared to entry-level M580 CPUs.
Q: Can I use different firmware versions in a redundant pair?
A: No. Schneider Electric mandates that both BMEH582040C modules must share identical hardware revisions and firmware versions to ensure stable synchronization.
Q: What happens if the synchronization cable is disconnected?
A: The system will detect a loss of the redundancy link and trigger an alarm. The primary CPU will continue to operate, but the standby CPU will lose the ability to perform a seamless switchover, effectively degrading the system to non-redundant mode until the link is restored.
