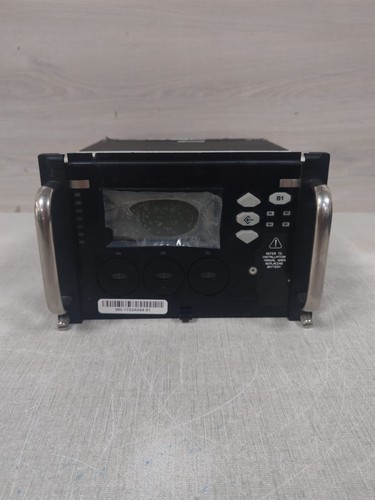

Schneider Electric MN-1703A044-01 | Controller

The Schneider Electric MN-1703A044-01 is a precision-engineered Controller module designed to provide reliable logic processing and system management in industrial automation and power distribution environments. As a critical component within Schneider’s control ecosystem, it ensures high-speed execution of control algorithms, precise monitoring of process variables, and seamless interaction with field devices to optimize operational performance.

📋 Product Specifications

• Model Number: MN-1703A044-01

• Product Type: Industrial Controller / Logic Module

• System Compatibility: Schneider Electric Modicon / Premium / Momentum Series (Application dependent)

• Dimensions: Standard industrial rack-mount format

• Weight: 0.55 kg

• Country of Origin: France / Germany

• Operating Temperature: 0°C to +60°C

• Input/Output Interface: High-density terminal block with multi-protocol support

•

🏢 Application Areas

This controller is widely utilized in sectors requiring stringent process control, such as energy management systems, automated manufacturing lines, building automation, and water infrastructure. It is specifically designed for applications where downtime is costly, offering the robustness needed for continuous operation in environments subject to vibration, electromagnetic interference, and thermal cycling.

🛠️ Product Usage Instructions

1. Safety Procedures: Before installation, ensure the power supply to the control rack is isolated. Always adhere to local electrical codes when terminating field wires to the module’s terminal blocks.

2. Installation: Mount the controller into the compatible backplane or DIN rail slot. Secure the module using the built-in locking mechanisms to ensure the electrical contacts are fully engaged.

3. Connectivity: Connect the data communication cables and I/O wiring according to the specific project wiring diagram. Ensure that all connections are snug and strain-relieved to prevent accidental disconnection.

4. Initialization: Power the rack. The MN-1703A044-01 will run a series of internal self-tests. A steady status LED indicates the controller is ready to receive configuration and control logic from the programming software.

5. Configuration: Utilize the Schneider Electric EcoStruxure Control Expert (formerly Unity Pro) or the relevant legacy software to load the control program and verify that I/O mapping is correct.

❓ Q&A

What does the MN-1703A044-01 model signify? This is a specific part number within Schneider Electric’s legacy and active controller range, indicating the processing capability, memory capacity, and integrated I/O interface options. It is crucial to verify the full part number to ensure hardware and software compatibility with your existing system. Can this module be used as a standalone controller? Yes, it is designed to manage localized control tasks efficiently. However, in most industrial setups, it is integrated into a larger network where it communicates with central supervisory systems or other distributed controllers. How do I troubleshoot a persistent “Fault” LED? A persistent fault LED usually indicates a critical hardware error, a corrupted configuration file, or an unhandled logic exception. Attempt a power cycle first; if the fault persists, use the programming software to retrieve the “Diagnostic Buffer” or “Error Log” for more specific details. Is this model still supported for new projects? This part number is often associated with specific automation lifecycles. It is highly recommended to check the current Schneider Electric Product Sustainability/Lifecycle status to determine if it is in the “Active,” “Classic,” or “Legacy” phase.
