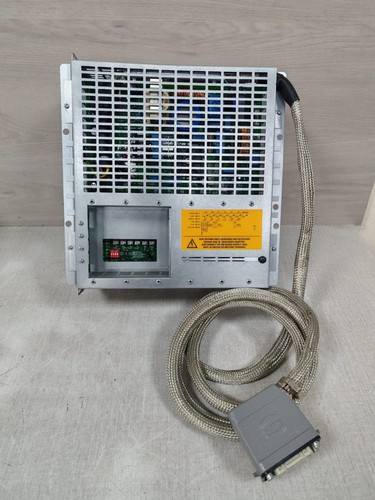

SMITHS HEIMANN HI-REG XRC-2.1 | 120-240V Industrial Power Supply

The Smiths Heimann HI-REG XRC-2.1 is a high-performance, specialized power supply module engineered specifically for X-ray security inspection systems. Designed to operate reliably within the demanding environment of baggage and cargo screening technology, this unit ensures stable high-voltage output and precise power management, which are critical for maintaining clear and accurate X-ray imaging quality.

⚙️ Product Parameters & Technical Datasheet

• Device Type: Industrial Power Supply Unit (PSU)

• Model Number: XRC-2.1 (HI-REG Series)

• Input Voltage: 120V – 240V AC (Auto-ranging/Universal Input)

• Application: X-ray generator control and imaging system power

• Operational Frequency: 50/60 Hz

• Cooling: Integrated forced-air/convection thermal management

• Housing: Industrial-grade ruggedized metal chassis

• Weight: Approximately 3.5 kg

• Origin: Germany / International Manufacturing

•

🏗️ Application Areas

This power supply is a core component in the Smiths Heimann (now Smiths Detection) product ecosystem, utilized primarily in:

• Security Screening: Powering X-ray generators in airport, customs, and secure facility checkpoint scanners.

• Industrial Inspection: Providing regulated power to non-destructive testing (NDT) X-ray equipment.

• Critical Infrastructure: Used in systems requiring high-reliability power stability for sensitive detector arrays.

🛠️ Product Usage Instructions

1. Safety Warning: High voltage is present during operation. Only authorized personnel trained in X-ray safety should perform installation or maintenance. Ensure the unit is disconnected from the main power for at least 5 minutes before handling to allow internal capacitors to discharge.

2. Mounting: Install the unit within the designated ventilated rack or internal chassis of the X-ray system. Ensure that the cooling vents are unobstructed to prevent overheating.

3. Wiring: Connect the AC input according to the labeling on the terminal block. Ensure that the protective Earth (PE) ground is securely connected to the chassis for both safety and EMI shielding.

4. Commissioning: Verify that the output voltage matches the requirements of the specific X-ray generator model before full system integration.

5. Maintenance: Periodically inspect the cooling fan for dust accumulation, which is the most common cause of premature power supply failure in high-traffic screening environments.

❓ Frequently Asked Questions (Q&A)

What is the “HI-REG” designation? “HI-REG” stands for High Regulation, indicating that this unit is designed to provide exceptionally stable output voltage even when the input power fluctuates, which is vital for preventing X-ray image artifacts.

Is this power supply compatible with different global voltages? Yes, the XRC-2.1 is designed with a universal input range of 120V to 240V AC, making it suitable for deployment in most global regions without the need for additional step-down transformers.

How do I know if the power supply has failed? Typical symptoms include the X-ray system failing to power up, “Generator Communication Error” messages on the operator console, or intermittent flickering/noise in the X-ray images.

Can I repair this unit? Due to the complex high-voltage circuitry, internal repair is not recommended unless performed by a certified technician with the appropriate high-voltage test equipment and safety protocols.
