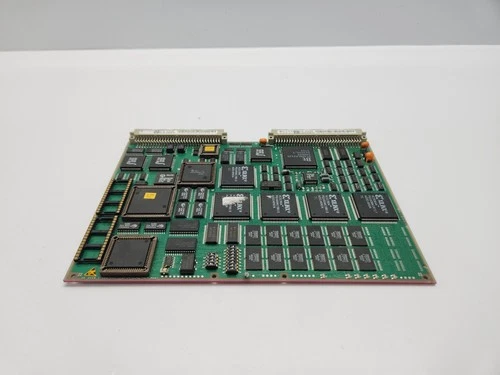

The STN ATLAS GE3006G322 and GE3006G323 are high-precision PCB Card modules developed for the STN Atlas Elektronik marine control ecosystem. These cards function as critical signal processing and interface units within navigation, radar, or propulsion control racks. They are engineered to facilitate high-speed data transmission and complex I/O management between vessel sensors and central processing units, ensuring the high availability required for maritime safety systems.
Technical Specifications
-
Model Name: STN ATLAS GE3006 Series
-
Variations: GE3006G322 / GE3006G323
-
System Role: Signal Interface and Processing Module
-
Dimensions: 233 mm (L) x 160 mm (W) x 20 mm (H) (Standard Eurocard format)
-
Weight: 0.45 kg
-
Country of Origin: Germany
Application Fields
These modules are widely utilized in STN Atlas integrated bridge systems, radar processing stations, and automated engine control rooms. They are essential for routing analog and digital signals from auxiliary navigation sensors, engine transducers, and steering feedback loops to the main system computer. They play a pivotal role in maintaining the accuracy of data displayed on bridge consoles and the reliability of automated ship maneuvering commands.
Instructions for Use
Before handling these PCB cards, it is mandatory to wear an anti-static wrist strap, as these modules are highly sensitive to electrostatic discharge (ESD). To install, verify the card slot address on the backplane to ensure the module is placed in the correct bay. Gently slide the card into the guiding rails until the connector pins are fully seated in the backplane receptacle. Secure the front panel locking levers firmly to prevent the card from vibrating loose during vessel operation. Once seated, power up the system and confirm the status LEDs on the card front face are consistent with normal operational parameters (typically a steady green light).
Frequently Asked Questions
What is the difference between the G322 and G323 versions? These versions often represent iterative hardware revisions. While they are usually pin-compatible and functionally identical in terms of primary logic, the GE3006G323 may incorporate updated circuitry for improved electromagnetic compatibility (EMC) or enhanced tolerance to power supply noise compared to the G322. Always check the system schematics to confirm if they are interchangeable in your specific rack configuration.
How do I troubleshoot a card failure? If a module fails, check the system diagnostic log via the main console interface. A “Communication Timeout” or “Data CRC Error” related to a specific slot number often points to an issue with the PCB. Ensure the connector pins on the backplane are not bent and that the card is fully seated.
Can these boards be repaired? Internal component-level repair is generally not recommended due to the specialized nature of the components and the precision calibration required. Replacement with an equivalent factory-tested unit is the standard procedure to ensure maritime safety compliance.
Are these cards hot-swappable? No, these cards are not designed for hot-swapping. You must isolate the system power before inserting or removing the PCB to prevent electrical arcing or damage to the backplane communication bus.
