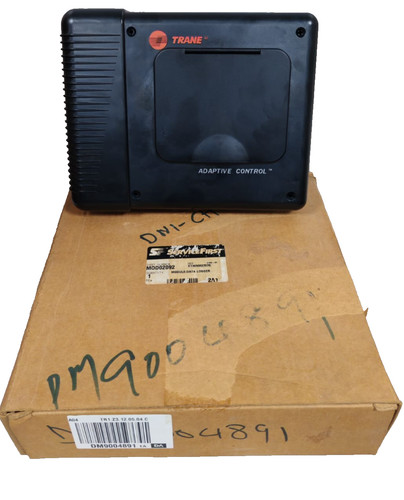

Trane X13650827-07 REV.S Adaptive Control | MOD02092

The Trane X13650827-07 REV.S, also identified as Adaptive Control MOD02092, is a sophisticated electronic module designed for high-performance HVAC system management. This control unit serves as a critical component in Trane’s advanced climate control architectures, ensuring optimal operational efficiency, precise temperature regulation, and proactive system protection. It utilizes proprietary algorithms to monitor real-time environmental variables and adjust mechanical outputs accordingly.

Product Specifications

• Model Number: X13650827-07 REV.S / MOD02092

• Dimensions: Approximately 220mm x 150mm x 50mm

• Weight: 0.85 kg

• Country of Origin: United States / Mexico (Manufacturing location may vary by batch)

• Communication Protocol: Proprietary Trane Link/Comm-bus

• Input Voltage: 24V AC

• Operating Temperature: -20°C to +70°C

Application Areas

This module is primarily integrated into commercial and industrial HVAC systems, including Trane rooftop units, chillers, and large-scale air handling systems. Its adaptive nature makes it ideal for facilities requiring strict climate control, such as data centers, healthcare institutions, manufacturing plants, and high-occupancy commercial office buildings where load fluctuations demand constant system re-calibration.

Product Usage Instructions

1. Safety First: Ensure power is completely disconnected from the HVAC unit before attempting any installation or replacement of the MOD02092 module.

2. Mounting: Secure the control board into the designated electrical enclosure using the provided vibration-dampening standoffs.

3. Wiring: Connect the communication harness and power supply terminals, ensuring that all connections are snug and oxidation-free.

4. Configuration: Upon powering up the system, use the Trane service tool to verify communication. The module typically undergoes an auto-addressing sequence to synchronize with the main system controller.

5. Validation: Monitor the status LEDs on the module; a steady green light indicates normal operation, while flashing sequences may indicate specific fault codes.

Q&A

What does the REV.S designation mean? The revision letter indicates the hardware iteration of the board. REV.S signifies a later production run with optimized component placement and potentially updated firmware for better signal stability. Why is the system displaying a communication error? This is often caused by a loose wiring harness, a termination resistor issue, or a conflict in the module addressing. Verify all physical connections before testing the bus voltage. Can I use a different revision board as a replacement? In many cases, yes, provided the hardware series is compatible. However, it is always recommended to match the part number exactly to ensure full feature parity with your specific firmware version. Is the board field-repairable? No. Due to the multi-layer surface-mount technology (SMT) and firmware-locked logic, these modules are designed for direct replacement rather than component-level repair.
