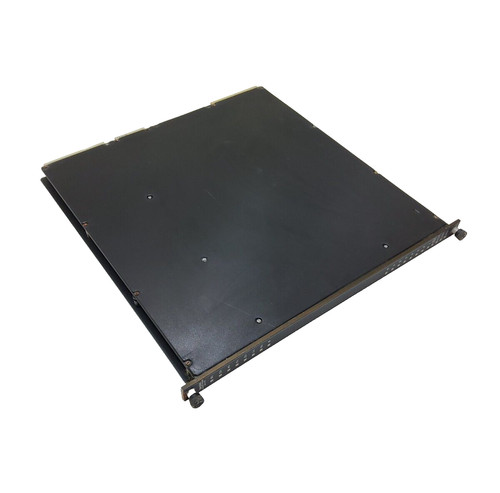

The TRICONEX 3604E is a high-performance Digital Output (DO) module designed for use within the Tricon Triple Modular Redundancy (TMR) system. This module is engineered for safety-critical applications where the reliability of shutting down or activating field devices is non-negotiable. By utilizing a sophisticated TMR architecture, the TRICONEX 3604E ensures that a single point of failure within the hardware will not result in an incorrect output signal, making it a cornerstone of functional safety in hazardous industrial processes.
Technical Parameters and Datasheet
-
Model Number: 3604E
-
Brand: Schneider Electric (Triconex)
-
Output Type: Digital (On/Off), Source
-
Number of Points: 16 Points, commoned
-
Rated Voltage: 24V DC
-
Output Current: 2.0 A maximum per point
-
Dimensions: 450 mm x 320 mm x 35 mm
-
Weight: 2.8 kg
-
Country of Origin: USA
-
Safety Integrity Level: SIL 3 (in TMR configuration)
-
Power Consumption: 10 Watts (typical)
Application Fields
The 3604E module is predominantly found in Emergency Shutdown Systems (ESD), Fire and Gas (F&G) systems, and Critical Control applications. It is widely used in the offshore oil and gas industry, refineries, and chemical processing plants to drive solenoids, relays, and motor starters. Its high-current capability per point allows it to directly control heavy-duty field devices without the need for interposing relays in many standard configurations.
Product Instructions
Installation must be carried out within a powered Tricon chassis. The module should be inserted into a designated I/O slot until the ejector levers click into the locked position. Once installed, the Tricon system’s “Hot-Swap” capability allows the module to be recognized and integrated into the active logic automatically. Field wiring is connected through an External Termination Assembly (ETA) or a dedicated cable set. Ensure that the 24V DC field power supply is clean and fused according to the load requirements of the 16 output points. Routine maintenance is minimal as the module performs continuous self-diagnostics on its internal circuits and the status of the output switches.
Common Questions and Answers
Q: Does the 3604E support “Load Supervision”? A: Yes, the module features sophisticated output voting and monitoring. It can detect both “stuck-on” and “stuck-off” fault conditions within the internal circuitry, and depending on the system configuration, it can also provide diagnostic information regarding field-side open circuits.
Q: Can I replace a 3604E while the system is running? A: Yes, Triconex modules are designed for online replacement. If a fault is indicated by the “Active” or “Fault” LEDs on the front panel, the module can be removed and replaced without interrupting the process control or the safety function.
Q: What is the “E” suffix in the model name 3604E? A: The “E” generally refers to “Enhanced” diagnostic capabilities or specific hardware revisions designed for better thermal management and improved protection against electromagnetic interference compared to earlier legacy versions.
