📊 Technical Specifications
| Feature | Specification |
| Model | 5466-318 |
| Revision | D |
| System | Woodward MicroNet TMR (Triple Modular Redundant) |
| Function | Kernel Processor / Control Processor |
| Platform | Digital Control System (DCS) for Turbines |
| Architecture | Real-time, Deterministic Processing |
| Application | Critical Power Generation & Propulsion Control |
| Mounting | MicroNet Chassis Slot |

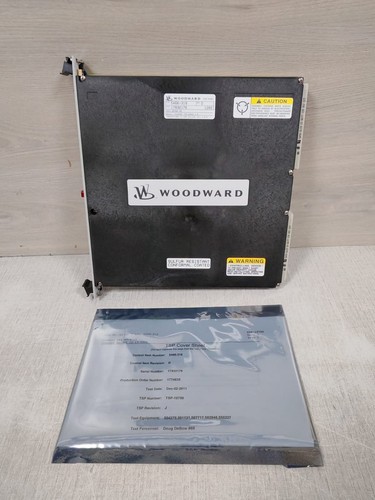

The 5466-318 is a high-performance Kernel processor module utilized within the Woodward MicroNet TMR control system. As the primary “brain” of the control unit, this Rev. D module executes complex control algorithms, manages I/O communications, and coordinates the triple modular redundancy voting logic. It is engineered to provide fail-safe, high-availability operation for critical rotating machinery, ensuring that turbine performance remains optimized and protected against hardware faults.
📰 Product News & Industry Context
The Woodward MicroNet TMR series remains the gold standard in turbine automation. The transition to Rev. D hardware has focused on improving processing speeds and enhancing the diagnostic communication bus to reduce latency in TMR voting cycles. Industry news highlights the continued reliance on the 5466 series for legacy retrofits where operators are migrating from older analog controls to robust, high-reliability digital platforms to meet modern safety and efficiency standards.
⚙️ Operating Instructions & Usage
-
Installation: Ensure the chassis power is off when inserting the module to prevent backplane pin damage. Ensure the module is fully seated and the front-panel locking levers are engaged.
-
Redundancy Management: In a TMR setup, the Kernel modules communicate via a high-speed reflective memory link. Ensure that all three processors are updated with identical firmware versions to prevent voting mismatches.
-
Diagnostics: Use the Woodward GAP (Graphical Application Programmer) software to monitor the health of the Kernel. The front-panel LEDs provide immediate visual confirmation of “CPU OK,” “Running,” and “Network Active” states.
-
Firmware Updates: Always verify the “Rev. D” compatibility with your current project build, as firmware upgrades may require updated versions of the GAP programming suite.
💡 Product Operation Overview
The 5466-318 operates as a high-speed, deterministic processor. It cyclically executes the user-defined application logic, reads inputs from the I/O bus, and sends output commands to the actuators. In a TMR configuration, this module participates in a “voting” process; if one of the three redundant processors produces a result that deviates from the others, that processor is flagged as faulty, while the system continues to operate seamlessly on the remaining healthy processors, ensuring zero-downtime control.
❓ Q&A: Frequently Asked Questions
Q: Can I replace a Rev. C module with a Rev. D module?
A: Generally, yes, provided your software application is compiled to support the hardware changes. Always consult the Woodward product service manual or technical support to ensure the specific build is compatible.
Q: What should I do if the “Kernel Fault” LED is illuminated?
A: A Kernel fault indicates the module has detected an internal hardware failure or a software watchdog timeout. If the system is in TMR mode, the other two processors will keep the machine running, but the faulted module must be replaced immediately to restore full redundancy.
Q: Is the 5466-318 hot-swappable?
A: In most TMR configurations, the module can be removed for maintenance; however, strict safety procedures should be followed to ensure the system is in a stable control state before initiating a module swap.
To better grasp how this module maintains stability during a failure, would you like to learn more about how the TMR voting logic differentiates between transient noise and actual hardware component failure?
