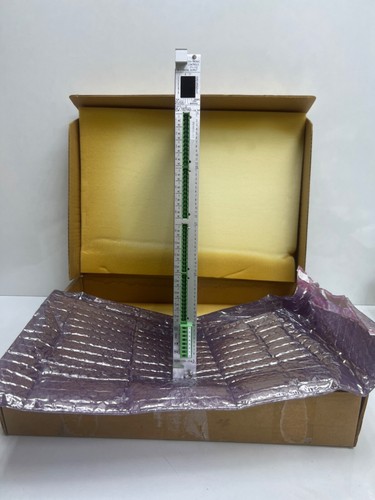

The Rolls-Royce ZE544-110A-2003 is a high-reliability discrete output module designed for the En-Tronic Controls system. This module is a vital component in the governance and sequencing logic of heavy-duty engines and compressors, providing the physical interface to drive solenoids, relays, and indicators. Built to withstand the harsh electromagnetic and thermal conditions of industrial engine rooms, the ZE544-110A-2003 ensures fast, accurate switching for critical control functions.
Product Specifications
-
Model Number: ZE544-110A-2003
-
System Series: Rolls-Royce En-Tronic Controls
-
Module Type: Discrete Output Module
-
Output Channels: 16 independent channels (typical configuration)
-
Switching Voltage: Supports standard industrial DC control voltages
-
Isolation: Optically isolated channels to protect internal logic from field surges
-
Dimensions: 210 mm x 45 mm x 185 mm
-
Weight: 0.92 kg
-
Country of Origin: United Kingdom / USA
Application Fields
The ZE544-110A-2003 is extensively used in the management of large-scale rotating equipment:
-
Gas Compression: Controlling fuel gas valves and emergency shutdown (ESD) solenoids.
-
Marine Propulsion: Managing engine start/stop sequences and auxiliary cooling system pumps.
-
Power Generation: Driving load-sharing relays and synchronization hardware.
-
Pipeline Monitoring: Actuating remote valves and status indicators across long-distance networks.
Product Usage Instructions
-
Mounting: Secure the module into the designated slot of the En-Tronic subrack. Ensure the edge connectors are clean and that the module is locked in place using the front-panel mounting hardware.
-
Field Wiring: Connect output loads to the corresponding terminal blocks. It is highly recommended to use external flyback diodes when driving inductive loads (like solenoids) to prevent back-EMF damage to the module.
-
Grounding: Verify that the rack frame is properly grounded to the system common to ensure the optical isolation functions correctly.
-
LED Diagnostics: Monitor the front-panel LEDs for channel status. A lit LED typically indicates an active output command, while a flashing “Fault” LED may indicate an overcurrent or short-circuit condition on the field side.
Frequently Asked Questions (Q&A)
Q: Can this module drive high-current AC loads directly? A: No, the ZE544-110A-2003 is designed for low-power DC control signals. For high-current or AC applications, this module should drive an interposing relay.
Q: What is the significance of the -2003 suffix? A: The -2003 suffix typically identifies a specific hardware revision or internal circuit configuration. When replacing a module, it is best to match this suffix to ensure identical timing and electrical characteristics.
Q: How do I test the module’s output without running the engine? A: You can use the En-Tronic diagnostic software to “force” an output channel. Ensure the field equipment is safely isolated before performing a manual override.
Q: Is there a fuse for each channel? A: Most En-Tronic output modules utilize electronic short-circuit protection, though some revisions may have internal micro-fuses. Refer to the specific wiring diagram for your control panel.
Similar Model Recommendations
-
Rolls-Royce ZE544-110A-1002: Early revision discrete output module.
-
Rolls-Royce ZE544-120A: Analog input module for pressure and temperature monitoring.
-
Rolls-Royce FT-2000: High-speed engine controller often paired with these modules.
-
Rolls-Royce ZE-500 series: Legacy I/O modules for older En-Tronic installations.
-
Woodward 5464-series: Alternative I/O solutions often found in similar turbine control cabinets.
