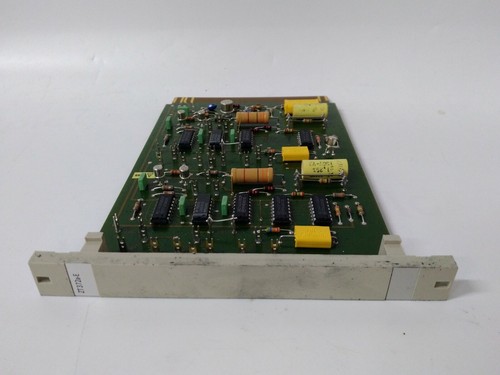

The ABB ZT372a-E (GJR2237800R1) is a specialized electronic control module utilized within ABB’s legacy automation frameworks. Often associated with high-reliability industrial systems like the Procontic or Advant series, this module serves as a critical component for signal processing and logic execution. The unit is designed to interface with complex industrial machinery, providing the necessary computational power to manage real-time data flow and high-speed control loops in demanding manufacturing environments.
Product Specifications
-
Model Number: ZT372a-E
-
Order Code: GJR2237800R1
-
Secondary Reference: HE663909-31828
-
Manufacturer: ABB
-
Product Type: Processing Control Module / Logic Board
-
Dimensions: 234 mm x 162 mm x 22 mm
-
Weight: 0.68 kg
-
Country of Origin: Germany
-
Input Voltage: +5V DC (Internal Bus)
-
Cooling: Passive Convection
Application Areas
The ZT372a-E is typically found in automation systems governing heavy industrial processes. It is widely used in metal processing plants, chemical production lines, and high-precision textile machinery. Due to its robust logic handling, it is also integrated into power distribution control systems where reliable signal synchronization is required to maintain grid stability and machine safety.
Operating Instructions
Before installing the ZT372a-E module, ensure that the system rack power is completely shut down. The module should be inserted into its designated slot with firm, even pressure to ensure that the multi-pin backplane connectors are fully seated. Tighten any integrated retaining screws to secure the module against vibration. Avoid touching the gold-plated contact pins to prevent oil contamination or ESD damage. Once powered on, monitor the diagnostic LEDs on the front faceplate to verify that the module has successfully completed its self-test and is communicating with the central processor.
Frequently Asked Questions (Q&A)
What is the function of the HE663909-31828 reference number? This is a secondary identification code, often used for internal tracking or as a manufacturing batch reference. When sourcing a replacement, ensuring both the GJR number and the ZT372a-E designation match is the most reliable way to confirm compatibility.
Is this module still in active production? The ZT372a-E is primarily considered a legacy component. While it is no longer the standard for new installations, it is heavily supported in the spare parts market to maintain existing industrial infrastructure.
Does this board require manual configuration via jumpers? Depending on the specific system version, some legacy boards utilize jumpers or dip-switches to define bus addresses. It is recommended to mirror the settings of the original board you are replacing to ensure seamless integration.
Find technical datasheets and current availability here: ZT372a-E ABB Control Module
Recommended Similar Models
-
ABB ZT374 – Expanded Logic Processing Unit
-
ABB GJR2237900R1 – Complementary Communication Board
-
ABB 07ZE82 – AC31 System Interface Module
-
ABB 07ZE62 – High-Speed Counter Module
-
ABB ZT370 – Standard Control Base Module
